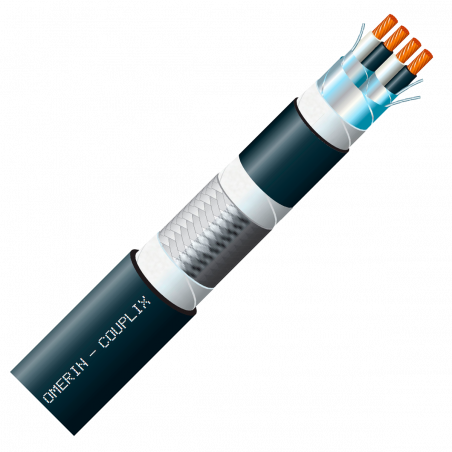

Diagram | Extension or compensation symbol | COUPLIX® reference | Conductor insulation | Sheathing material | Temperature of insulation at continuous operating temperature |
---|---|---|---|---|---|
T, J, E, K, N |
MY2-Y2
|
PCV 105° FEP PFA |
PCV105° FEP PFA |
-30 to +105 °C -190 to +205 °C -190 to +260 °C | |
T, J, E, K, N |
MV-VS |
Fibreglass | Fibreglass | -60 to +300 °C | |
MV-VS-R |
High temperature fibreglass | High temperature fibreglass | -60 to +400 °C | ||
E, K, N |
MSI-SI
|
Silica fibre Borosilicoaluminate fibre | Silica fibre Borosilicoaluminate fibre | 0 to +1000 °C 0 to +1200 °C | |
T, J, E, K, N |
MK-K |
Polyimide | Polyimide | -190 to +350 °C | |
T, J, E, K, N |
BIM-Y 2 BGM-Y2 BEM-Y2 |
PCV 105°C PCV 105°C PCV 105°C |
Stainless steel braid Galvanized steel braid Tin-plated copper braid | -30 to +105 °C | |
BIM-FEP
|
FEP FEP FEP |
Stainless steel braid Galvanized steel braid Tin-plated copper braid | -190 to +205 °C | ||
BIM-PFA |
PFA | Stainless steel braid | -190 to +260 °C | ||
T, J, E, K, N |
BIMY2-Y2
|
PCV 105°C PCV 105°C PCV 105°C |
PVC 105 °C / Stainless steel braid PVC 105 °C / Tin-plated copper braid PVC 105 °C / Stainless steel braid | -30 to +105°C | |
BIM6-6
|
FEP FEP FEP |
FEP / Stainless steel braid FEP / Galvanised steel braid FEP / Tin-plated copper braid | -190 to +205 °C | ||
BIM5-5 |
PFA | PFA / Stainless steel braid | -190 to +260 °C | ||
T, J, E, K, N |
BIMV-VS BGMV-VS |
Fibreglass Fibreglass |
Fibreglass / Stainless steel braid Fibreglass / Galvanised steel braid | -60 to +300 °C | |
BEMV-VS |
Fibreglass | Fibreglass / Tin-plated copper braid | -60 to +250 °C | ||
BIMV-VS-R |
High temperature fibreglass | High temperature fibreglass Stainless steel braid | -60 to +400 °C |
Conductive cores, stranding | ||
---|---|---|
Cross-section (mm²) | Cross-section AWG | Stranding |
0,03 | 32 | 1 x 0,20 |
0,05 | 30 | 1 x 0,25 |
0,07 | 28 | 1 x 0,30 |
0,20 | 24 | 1 x 0,50 |
0,22 | 24 | 7 x 0,20 |
0,22 | 24 | 3 x 0,30 |
0,34 | 22 | 1 x 0,65 |
0,34 | 22 | 5 x 0,30 |
0,50 | 20 | 1 x 0,80 |
0,50 | 20 | 7 x 0,30 |
0,50 | 20 | 16x0,20 |
0.75 | - | 11 x 0.30 |
1 | 18 | 14 x 0.30 |
1.34 | 16 | 19 x 0.30 |
1.5 | - | 21 x 0.30 |
2 | 14 | 1 x 1.60 |
Cross-sections (stranding) | |||||||
---|---|---|---|---|---|---|---|
Insulation reference | Cable shape | 2 x 0,03mm2 (1/0,20mm) |
2 x 0,07mm2 (1/0,30mm) |
2 x 0,20mm2 (1/0,50mm) |
2 x 0,22mm2 (7/0,20mm) |
2 x 0,5mm (1/0,80mm) |
2 x 0.5 mm² (7/0.30 mm) |
MY2-Y2 |
round | 3.0 | 3.2 | 3.6 | 3.8 | 4.6 | 4.8 |
M6-6 |
flat | 1.1 x 1.7 | 1.1 x 1.8 | 1.3 x 2.2 | 1.4 x 2.4 | 1.8 x 3.1 | 2.0 x 3.4 |
M5-5 |
flat | 1.1 x 1.7 | 1.1 x 1.8 | 1.3 x 2.2 | 1.4 x 2.4 | 1.8 x 3.1 | 2.0 x 3.4 |
MV-VS |
flat | 1.2 x 1.8 | 1.3 x 2.0 | 1.5 x 2.4 | 1.6 x 2.6 | 1.8 x 3.2 | 2.0 x 3.6 |
MV-VS-R |
flat | 1.2 x 1.8 | 1.3 x 2.0 | 1.5 x 2.4 | 1.6 x 2.6 | 1.8 x 3.2 | 2.0 x 3.6 |
MSI-SI |
flat | 1.4 x 1.8 | 1.6 x 2.2 | 1.9 x 2.8 | 2.0 x 2.9 | 2.2 x 3.3 | 2.4 x 3.6 |
MNX-NX |
flat | 1.8 x 2.4 | 1.9 x 2.6 | 2.1 x 3.0 | 2.2 x 3.3 | 2.4 x 3.6 | 2.6 x 3.9 |
MK-K |
flat | 0.7 x 1.0 | 0.8 x 1.2 | 1.1 x 1.6 | 1.2 x 2.0 | 1.5 x 2.4 | 1.6 x 2.6 |
Options
- Other cross-sections and stranding: contact us.
- Other types of insulation: contact us.
- Other thermoelectric couples (R, S, B, C, A): contact us.
- Special pyrometric calibration tolerances: contact us.
1 - Registered trademark of OMERIN
2 - Symbol of thermoelectric couple
3 - Insulation reference (see main products on next page)
4 - Cable shape:
- Round (twisted conductors)
- Flat (parallel assembly)
5 - Applicable standard for colour code (see table of standardised colour codes)
6 - Number of conductors = 2 in general:
- Positive conductor
- Negative conductor
7 - Core cross-section in mm2 or AWG
8 - Number of strands
9 - Diameter of each strand (in mm)
Send an inquiry
