Manufacturer: HEITEC AG

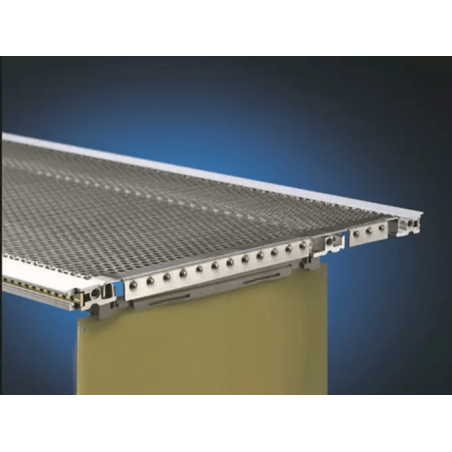

3687629 Cover 1 Part 42HP / 252 mm

  • 3687629
  • Version Pokrycie całkowitej głębokości subrack
  • Height (U) 3 U
  • Width (HP) 84 HP
  • Side panel depth 245 mm
  • Maximum PCB Depth 220 mm
  • Electronic connection złącze
  • Packed after 1 część
  • EMC nie
For all HeiPac Vario, HeiPac Vario EMC, HeiPac Vario Compact and HeiPac Vario Mobile subracks.

To cover the overall subrack depth
(EMC application) or as connector protection.
  • Flat design for top and bottom
  • Optionally solid or perforated
  • For mounting on the subrack side panel with the aid of mounting blocks.
Material:
1.0 mm aluminum, unplated, hole diameter 4 mm in perforated version.

Each set includes:
  • 2 cover plates,
  • 8 mounting blocks @ 28.5 mm,
  • 24 assembly screws.
Each individual unit includes: 1 cover.

Note: For EMC applications, additional mounting blocks must be fitted across the entire subrack depth.
