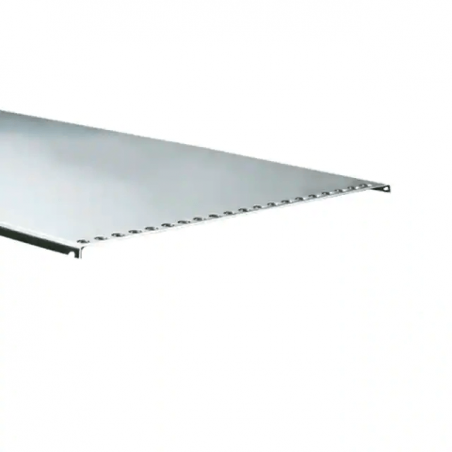

3687626 Cover 2 invalid 42HP / 142mm
  • 3687626 Cover 2 invalid 42HP / 142mm

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: HEITEC AG

3687626 Cover 2 invalid 42HP / 142mm

  • 3687626
  • Version Front szyny poziomej z blatem 10 mm na uchwyty (V-Ext.1)
    Głębokość krycia PCB
    Pokrycie całkowitej głębokości subrack
  • Height (U) 7 U (6+2x1/2)
  • Width (HP) 84 HP
  • Side panel depth 345 mm
  • Maximum PCB Depth 280 mm
  • Electronic connection płyta montażowa
  • Packed after 1 Zestaw
  • EMC tak
For all HeiPac Vario, HeiPac Vario EMC, HeiPac Vario Compact and HeiPac Vario Mobile subracks.

To cover the overall subrack depth
(EMC application) or as connector protection.
  • Flat design for top and bottom
  • Optionally solid or perforated
  • For mounting on the subrack side panel with the aid of mounting blocks.
Material:
1.0 mm aluminum, unplated, hole diameter 4 mm in perforated version.

Each set includes:
  • 2 cover plates,
  • 8 mounting blocks @ 28.5 mm,
  • 24 assembly screws.
Each individual unit includes: 1 cover.

Note: For EMC applications, additional mounting blocks must be fitted across the entire subrack depth.
