Manufacturer: HEITEC AG

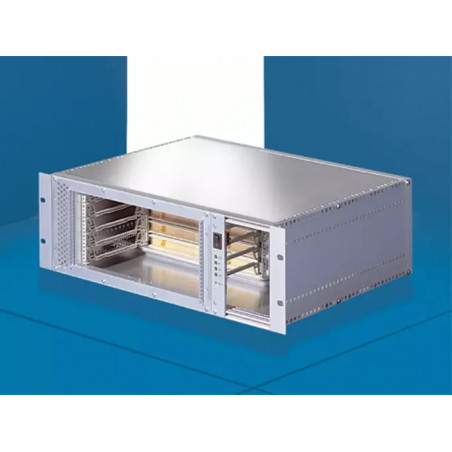

CPCI system platforms

Heipac 3 U / 5 Slot, 4 U / 7 Horizontal Slot (CPCI)


Technical characteristics of the Heipac 3 U / 5 SLOT, 4 U / 7 horizontal slot (CPCI)

Subrack with a depth of 405 mm adapted for assembly in 482.6 mm (19 ") housings or cabinets. Designed for cooperation with CPCI discs and hard drives. Includes MPS Monitoring set.


Product No. Height (he) Side panel depth PCB slot depth Version Number of slots
9910944 3 U 405 mm 160 mm Cpci 5
9910945 4 405 mm 160 mm Cpci 7


HEIPAC 4 U / 8 slot, 7 U / 8 (CPCI) socket


Technical characteristics HEIPAC 4 U / 8 slot, 7 U / 8 sockets (CPCI)

Subrack with a depth of 405 mm adapted for assembly in 482.6 mm (19 ") housings or cabinets. Designed for cooperation with CPCI discs and hard drives. Includes MPS Monitoring set. Consistent with IEC 60 297-3-101, -102, -103. Fully assembled, pre-wired and tested.


Product No. Height (he) Side panel depth PCB slot depth Version Number of slots
9910946 4 U (3 + 1) 405 mm 160 mm Cpci 8
9910948 7 U (6 + 1) 405 mm 160 mm Cpci 8


HEIPAC 7 U / 8 Socket (CPCI)


Technical characteristics HEIPAC 7 U / 8 (CPCI) socket

Subrack with a depth of 405 mm adapted for assembly in 482.6 mm (19 ") housings or cabinets. Designed for cooperation with CPCI discs and hard drives. Includes MPS Monitoring set. Consistent with IEC 60 297-3-101, -102, -103. Fully assembled, pre-wired and tested. . Consistent with IEC 60 297-3-101, -102, -103. Fully assembled, pre-wired and tested.


Product No. Height (he) Side panel depth PCB slot depth Version Number of slots
9910947 7 U (6 + 2x1 / 2) 405 mm 160 mm Cpci 8


Heipac 9 U / 8 Slot, with Heicool Radial Fan (CPCI)


Technical characteristics of the Heipac 9 U / 8 SLOT platform, with Heicool radial fan (CPCI)

Subrack with a depth of 290.5 mm adapted for assembly in 482.6 mm (19 ") casings or cabinets. Designed for cooperation with CPCI discs and hard drives. Includes MPS Monitoring set. Consistent with IEC 60 297-3-101, -102, -103. Fully assembled, pre-wired and tested.


Product No. Height (he) Side panel depth PCB slot depth Version Number of slots
9909483 9 U (6 + 2x1 1/2) 290.5 mm 160 mm Cpci 8
