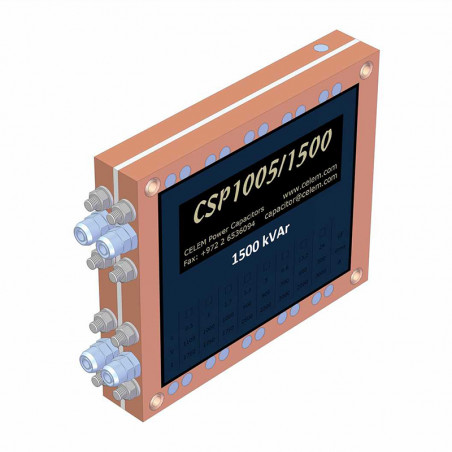

Photos are for informational purposes only. View product specification
please use latin characters
Type | CSP 1005 | ||||||||
---|---|---|---|---|---|---|---|---|---|
Dimensions | [mm] | 192x150x30,5 | |||||||
Weight | [kg] | 4,2 | |||||||
Capacity(±10%) | [µF] | 0,5 | 1 | 1,7 | 3,4 | 5 | 6,6 | 13 | 24 |
Sinusoidal Voltage | [VRMS] | 700 | 600 | 500 | 400 | ||||
Impulse voltage | [V] | 990 | 850 | 710 | 570 | ||||
Max current | [A] | 1500 | 2000 | 2500 | 3000 | ||||
Max power | [kVAr] | 1000 | |||||||
Frequency range @ Full power | [kHz] | 650-700 | 325-358 | 191-211 | 96-187 | 55-127 | 67-96 | 49-77 | 41-60 |
Dissipation Inductance | [nH] | <5 |
Dimensions[mm]
![]() |
Characteristics
![]() |
Are you interested in this product? Do you need additional information or individual pricing?
Type | CSP 1005 | ||||||||
---|---|---|---|---|---|---|---|---|---|
Dimensions | [mm] | 192x150x30,5 | |||||||
Weight | [kg] | 4,2 | |||||||
Capacity(±10%) | [µF] | 0,5 | 1 | 1,7 | 3,4 | 5 | 6,6 | 13 | 24 |
Sinusoidal Voltage | [VRMS] | 700 | 600 | 500 | 400 | ||||
Impulse voltage | [V] | 990 | 850 | 710 | 570 | ||||
Max current | [A] | 1500 | 2000 | 2500 | 3000 | ||||
Max power | [kVAr] | 1000 | |||||||
Frequency range @ Full power | [kHz] | 650-700 | 325-358 | 191-211 | 96-187 | 55-127 | 67-96 | 49-77 | 41-60 |
Dissipation Inductance | [nH] | <5 |
Dimensions[mm]
![]() |
Characteristics
![]() |
