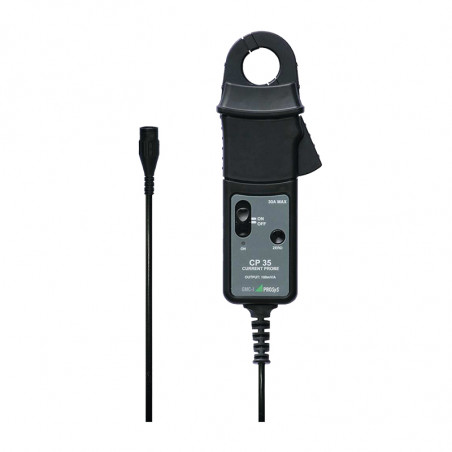

AC / DC current probes - CP3 series

  • Two models Multimeter (CP30) and Oscilloscope (CP35 and CP305)
  • AC / DC low current measurement down to mAmps
  • Excellent Accuracy with 1mA resolution (CP30/CP35)
  • DC Auto Zero and Auto Power Off
  • Compact lightweight design
  • Broad bandwidth and low phase shift for power
    and harmonics measurement
  • Superior noise rejection for power electronics applications
Typical applications
  • Light industrial and residential electrical installation testing
  • Leakage current measurements
  • Process control for 4 – 20mA current loop verification
  • Battery charging systems
  • Analysis of switching waveforms in inverters, switch mode power supplies and industrial controls
  • Automotive applications eg., Leakage current measurement on car battery lead, detection of ECU sleep
    mode and current profiling, all requiring high accuracy and superior resolution.


Specifications

Non-invasive AC/DC current measurement
MODEL

CP 30

CP 35

CP 305
Current Range (s) 30A DC lub AC Peak 30A DC lub AC Peak 30 / 300A RMS
Output Sensitivity 100mV/A 100mV/A 10 / 1mV/A
Frequency Range DC to 20kHz (-3dB) DC to 100kHz (-0.5dB) DC to 20kHz (-3dB)
Resolution ± 1mA ± 1mA ± 501± 100mA
Basic Accuracy ± 1% of reading± 2mA ± 1% of reading± 50 / ±100mA
Conductor position sensitivity < ± 1% relative to centre reading
Phase shift (up to 1kHz) < 2 degrees
Load Impedance > 100kΩ
Output commection Safety 4mm plugs Safety BNC connector Safety BNC connector / 4mm plugs

ENVIRONMENTAL DATA
Operating Temperature
0°C do 50°C
Temp. Coefficient

± 0.01% of reading peroC
± 0.1% of reading peroC (CP305)
Storage Temperature (without battery)
-20°C do 85°C
POWER SUPPLY

Battery type
9V Alkaline: MN1604, PP3
IEC 6LR61 or euivalent
Battery life
30 hours typical
MECHANICAL DATA
Dimensions (mm)
194 (W) x 74 (S) x 25 (G)

Jaw Capacity

25mm  Ø
Weight
320 g
SAFET

EN61010-2-032:2002,
300V, Measurement Category III, Pollution Degree 2

MAXIMUM SAFE VOLTAGES
300V AC RMS or DC between uninsulated conductor and ground
EMC Standard EN 61326-2-2:2006
All accuracies stated at 23°C ± 1°C (73.4°F ± 1.8°F)

High Accuracy with 1mA Resolution
Advanced patented magnetic circuit design results in probes accuracy to be little affected by external magnetic fields or off-centre conductor positioning. ej.

EN61010-2-032:2002 and EMC Conformance
Safety features including a tactile barrier and special jaw design provide the user with confidence when making measurements in hazardous voltage areas.
Conformance to EMC standards ensures high reliability through reduced susceptibility to electromagnetic interference.

Catalog number
Output type

CP30
BNC

CP35
BNC

CP305
4mm

CP305_4mm
4mm
Less
Read more

Send an inquiry
