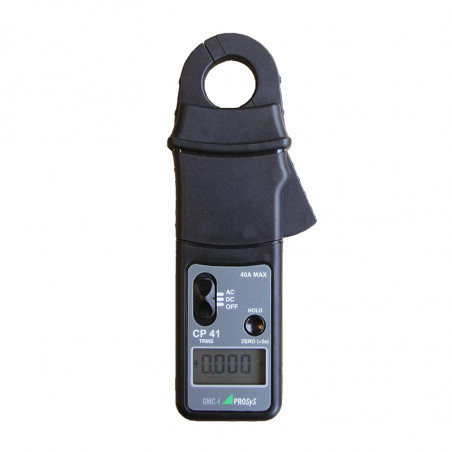

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: GMC-I PROSyS

AC / DC current probes (powered external)

  • Three models 5 A, 50 A and 100 A
  • AC/DC low current measurement down to mAmps
  • Externally powered for measurement over time
  • Excellent accuracy with 1mA resolution
  • Broad bandwidth and low phase shift for power and harmonics
    measurement
  • Superior noise rejection for power electronics applications
  • Superior external field rejection for automotive applications
  • Conformance to IEC1010 and EMC standards
Typical applications
  • Leakage current measurements in automotive applications
  • Process control for 4 – 20mA current loop verification
  • Battery charging systems
  • Light industrial and residential electrical installation testing
  • Analysis of switching waveforms in inverters, switch mode power supplies and industrial controls


SPECIFICATIONS

NON-INVASIVE CURRENT MEASUREMENT
MODEL

CP 5_10

CP 50_10

CP 150_10
Current Range 5A DC or AC RMS 50A DC or AC RMS 150A DC or AC PEAK
Output Sensitivity 100mV/A 100mV/A 50mV/A
Frequency Range DC to 100kHz (-1dB)
Resolution ± 1mA
Basic Accuracy ± 1% of reading ± 2mA
Output connection 2.9m cable unterminated

ENVIRONMENTAL DATA
Operating Temperature
0°C to 50°C
Temperature Coefficient

± 0.15% of reading peroC
Storage Temperature (without battery)
-20°C to 85°C
POWER SUPPLY

External Power
± 10.5 to ±16V
MECHANICAL DATA
Dimensions (mm)
194 (W) x 74 (S) x 25 (G)

Jaw Capacity

25mm  Ø
Other jaw sizes on request available
Weight
320 g
SAFETY

EN61010-2-032:2002,
300V, Measurement Category III, Pollution Degree 2.
Output limited to 30V to Earth (Unterminated)
MAXIMUM SAFE VOLTAGES
300V AC RMS or DC between uninsulated conductor and ground
EMC Standard EN 61326-2-2:2006
All accuracies stated at 23°C ± 1°C (73.4°F ± 1.8°F)

High Accuracy
Advanced patented magnetic circuit design results in accuracy to be little affected by external magnetic fields or off-centre conductor positioning.

EN61010-2-032:2002 and EMC Conformance
Safety features including a tactile barrier and special jaw design provide the user with confidence when making measurements in hazardous voltage areas.
Conformance to EMC standards ensures high reliability through reduced susceptibility to electromagnetic interference

Catalog number

CP 5_10

CP 50_10

CP 150_10
