TAC010 current transformer with primary winding
  • TAC010 current transformer with primary winding

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: FRER

TAC010 current transformer with primary winding

Technical Data

Thermoplastic material UL94-V0
Operating frequency 50-60Hz
Voltage 0.72kV
Test voltage 3kV * 1’50Hz
Insulation Klasa E
Protection degree IP 20
Continuous overcurrent 1.2In
Rated short-time thermal current (I th) 60 In
Rated dynamic current (I dyn) 2.5 x I th
Safety factor N<5
max. power dissipation (max range value) <2.5W
Operating temperature -25 +50o C
Storage temperature -40 +80o C
Manufactured according to

IEC/E N 60044-1,
VDE, BS, UTE

Integrated secondary terminals 6mm2

Ratio Burdens [VA] Code
cl. 0.5 cl.1 5 A 1 A
5 A 10 20

TAC010005X05

TAC010005X01

10 A 10 20

TAC010010X05

TAC010010X01

15 A 10 20

TAC010015X05

TAC010015X01

20 A 10 20

TAC010020X05

TAC010020X01

25 A 10 20

TAC010025X05

TAC010025X01

30 A 10 20

TAC010030X05

TAC010030X01

40 A 10 20

TAC010040X05

TAC010040X01

50 A 10 20

TAC010050X05

TAC010050X01

60 A 10 20

TAC010060X05

TAC010060X01

80 A 10 20

TAC010080X05

TAC010080X01

100 A 10 20

TAC010100X05

TAC010100X01

120 A 10 20

TAC010120X05

TAC010120X01

150 A 10 20

TAC010150X05

TAC010150X01

200 A 10 20

TAC010200X05

TAC010200X01

250 A 10 20

TAC010250X05

TAC010250X01

300 A 10 20

TAC010300X05

TAC010300X01

400 A 10 20

TAC010400X05

TAC010400X01

500 A 10 20

TAC010500X05

TAC010500X01

600 A 10 20

TAC010600X05

TAC010600X01



Dimensions

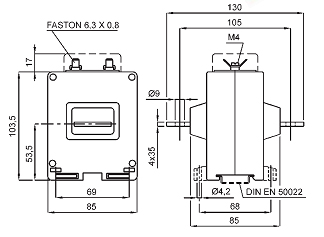

Przekładnik prądowy TAC010 z uzwojeniem pierwotnym wymiary

Send an inquiry

Are you interested in this product? Do you need additional information or individual pricing?

Contact us
ASK FOR THE PRODUCT close
Thank you for sending your message. We will respond as soon as possible.
ASK FOR THE PRODUCT close
Browse

Add to Wishlist

You must be logged in

Technical Data

Thermoplastic material UL94-V0
Operating frequency 50-60Hz
Voltage 0.72kV
Test voltage 3kV * 1’50Hz
Insulation Klasa E
Protection degree IP 20
Continuous overcurrent 1.2In
Rated short-time thermal current (I th) 60 In
Rated dynamic current (I dyn) 2.5 x I th
Safety factor N<5
max. power dissipation (max range value) <2.5W
Operating temperature -25 +50o C
Storage temperature -40 +80o C
Manufactured according to

IEC/E N 60044-1,
VDE, BS, UTE

Integrated secondary terminals 6mm2

Ratio Burdens [VA] Code
cl. 0.5 cl.1 5 A 1 A
5 A 10 20

TAC010005X05

TAC010005X01

10 A 10 20

TAC010010X05

TAC010010X01

15 A 10 20

TAC010015X05

TAC010015X01

20 A 10 20

TAC010020X05

TAC010020X01

25 A 10 20

TAC010025X05

TAC010025X01

30 A 10 20

TAC010030X05

TAC010030X01

40 A 10 20

TAC010040X05

TAC010040X01

50 A 10 20

TAC010050X05

TAC010050X01

60 A 10 20

TAC010060X05

TAC010060X01

80 A 10 20

TAC010080X05

TAC010080X01

100 A 10 20

TAC010100X05

TAC010100X01

120 A 10 20

TAC010120X05

TAC010120X01

150 A 10 20

TAC010150X05

TAC010150X01

200 A 10 20

TAC010200X05

TAC010200X01

250 A 10 20

TAC010250X05

TAC010250X01

300 A 10 20

TAC010300X05

TAC010300X01

400 A 10 20

TAC010400X05

TAC010400X01

500 A 10 20

TAC010500X05

TAC010500X01

600 A 10 20

TAC010600X05

TAC010600X01



Dimensions

Przekładnik prądowy TAC010 z uzwojeniem pierwotnym wymiary
