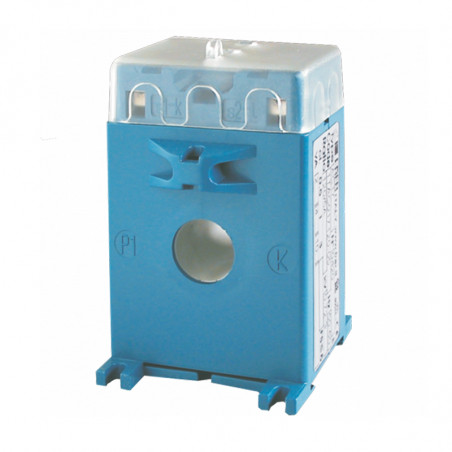

TAC017 current transformer for Ø17 cable / 15x5mm rail
  • TAC017 current transformer for Ø17 cable / 15x5mm rail

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: FRER

TAC017 current transformer for Ø17 cable / 15x5mm rail

TECHNICAL DATA

Thermoplastic material UL94-V0
Operating frequency 50-60Hz
Voltage 0.72kV
Test voltage 3kV * 1’50Hz
Insulation Klasa E
Protection degree IP 20
Continuous overcurrent 1.2In
Rated short-time thermal current (I th) 40 In
Rated dynamic current (I dyn) 2.5 x I th
Safety factor N<5
max. power dissipation (max range value) <2 W
Operating temperature -25 +50o C
Storage temperature +40+80o C
Manufactured according to

IEC/EN 60044-1,
VDE, BS, UTE
Integrated secondary terminals 6mm2


SECONDARY 5A

Ratio Burdens
[VA]		 Code
cl. 0.5 cl. 1 cl. 3
30/5 A     1.5

TAC017030X05
40/5 A     3

TAC017040X05
50/5 A   1 4

TAC017050X05
60/5 A   1.25 5

TAC017060X05
80/5 A 1 2.5 6

TAC017080X05
100/5 A 2 4 8

TAC017100X05
120/5 A 2.5 4 10

TAC017120X05
150/5 A 4 8 15

TAC017150X05
200/5 A 7 15 20

TAC017200X05

SECONDARY 1 A

Ratio Burdens
[VA]		 Code
cl. 0.5 cl. 1 cl. 3
30/1 A     1.5

TAC017030X01
40/1 A     3

TAC017040X01
50/1 A   1 4

TAC017050X01
60/1 A   1.25 5

TAC017060X01
80/1 A 1 2.5 6

TAC017080X01
100/1 A 2 4 8

TAC017100X01
120/1 A 2.5 4 10

TAC017120X01
150/1 A 4 8 15

TAC017150X01
200/1 A 7 15 20

TAC017200X01


Dimensions

Przekładnik prądowy TAC017 na kabel Ø17/ szynę 15x5mm wymmiary
