Cable passing measuring CT’s TAC040
  • Cable passing measuring CT’s TAC040

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: FRER

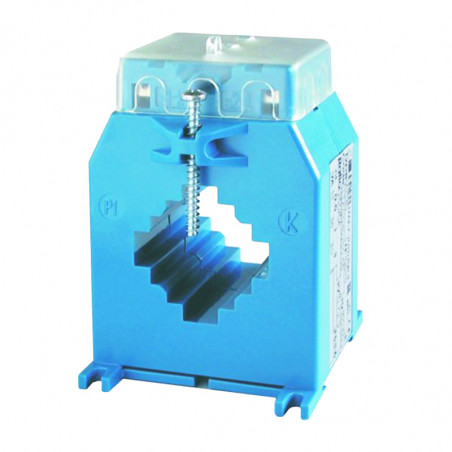

TAC040 current transformer for Ø32 cable / 40x10mm rail

Technical Data

Thermoplastic material UL94-V0
Operating frequency 50-60Hz
Voltage 0.72kV
Test voltage 3kV * 1’50Hz
Insulation Klasa E
Protection degree IP 20
Continuous overcurrent 1.2In
Rated short-time thermal current (I th) 60 In
Rated dynamic current (I dyn) 2.5 x I th
Safety factor N<5
max. power dissipation (max range value) <7W
Operating temperature -25 +50o C
Storage temperature -40 +80o C
Manufactured according to

IEC/E N 60044-1,
VDE, BS, UTE
Integrated secondary terminals 6mm2


SECONDARY 5A

Ratio Burdens
[VA]		 Code
cl. 0.5 cl. 1 cl. 3
100/5 A   1.5 4

TAC040100X05
120/5 A   2 4

TAC040120X05
150/5 A 1.5 3 5

TAC040150X05
200/5 A 2 4 6

TAC040200X05
250/5 A 3 6 9

TAC040250X05
300/5 A 5 8 12

TAC040300X05
400/5 A 10 15 20

TAC040400X05
500/5 A 12 20 25

TAC040500X05
600/5 A 15 20 25

TAC040600X05
800/5 A 18 25 30

TAC040800X05
1000/5 A 20 25 30

TAC0401K0X05

SECONDARY 1A

Ratio Burdens
[VA]		 Code
cl. 0.5 cl. 1 cl. 3
100/1 A   1.5 4

TAC040100X01
120/1 A   2 4

TAC040120X01
150/1 A 1.5 3 5

TAC040150X01
200/1 A 2 4 6

TAC040200X01
250/1 A 3 6 9

TAC040250X01
300/1 A 5 8 12

TAC040300X01
400/1 A 10 15 20

TAC040400X01
500/1 A 12 20 25

TAC040500X01
600/1 A 15 20 25

TAC040600X01
800/1 A 18 25 30

TAC040800X01
1000/1 A 20 25 30

TAC0401K0X01

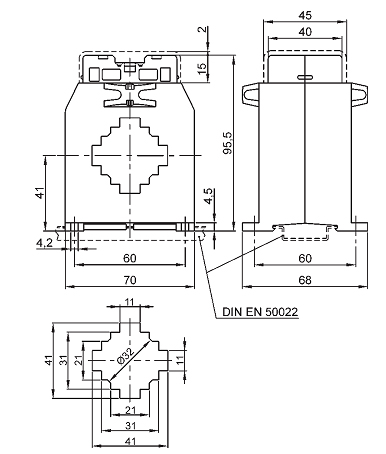

Dimensions

Przekładnik prądowy TAC040 wymiar
