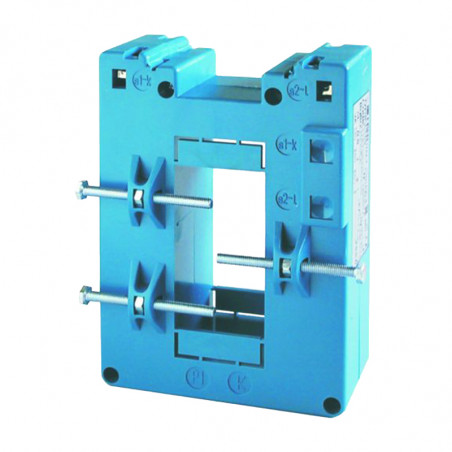

TAT084 current transformer for 62x34mm and 84x34mm rail
  • TAT084 current transformer for 62x34mm and 84x34mm rail

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: FRER

TAT084 current transformer for 62x34mm and 84x34mm rail

Technical Data

Thermoplastic material UL94-V0
Operating frequency 50-60Hz
Voltage 0.72kV
Test voltage 3kV * 1’50Hz
Insulation Klasa E
Protection degree IP 20
Continuous overcurrent 1.2In
Rated short-time thermal current (I th) 80 In
Rated dynamic current (I dyn) 2.5 x I th
Safety factor N<5
max. power dissipation (max range value) <17W
Operating temperature -25 +50o C
Storage temperature -40 +80o C
Manufactured according to

IEC/E N 60044-1,
VDE, BS, UTE
Integrated secondary terminals 6mm2


SECONDARY 5A

Ratio Burdens
[VA]		 Code
cl. 0.5 cl. 1
200/5 A 2 4

TAT084200X05
250/5 A 3 6

TAT084250X05
300/5 A 4 8

TAT084300X05
400/5 A 5 10

TAT084400X05
500/5 A 6 15

TAT084500X05
600/5 A 8 20

TAT084600X05
800/5 A 10 20

TAT084800X05
1000/5 A 15 25

TAT0841K0X05
1200/5 A 20 40

TAT0841K2X05
1500/5 A 25 50

TAT0841K5X05
2000/5 A 30 60

TAT0842K0X05
2500/5 A 40 80

TAT0842K5X05

SECONDARY 1A

Ratio Burdens
[VA]		 Code
cl. 0.5 cl. 1
200/1 A 2 4

TAT084200X01
250/1 A 3 6

TAT084250X01
300/1 A 4 8

TAT084300X01
400/1 A 5 10

TAT084400X01
500/1 A 6 15

TAT084500X01
600/1 A 8 20

TAT084600X01
800/1 A 10 20

TAT084800X01
1000/1 A 15 25

TAT0841K0X01
1200/1 A 20 40

TAT0841K2X01
1500/1 A 25 50

TAT0841K5X01
2000/1 A 30 60

TAT0842K0X01
2500/1 A 40 80

TAT0842K5X01

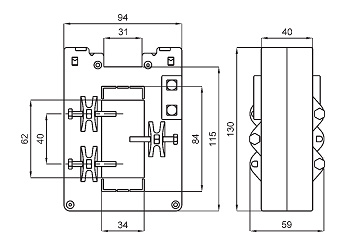

Dimensions

Przekładnik prądowy TAT084 na szynę 62x34mm i 84x34mm wymiar
