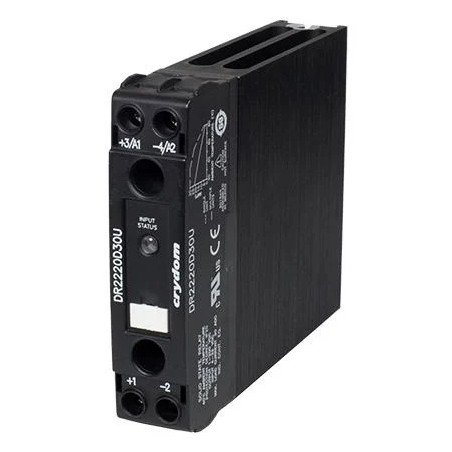

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Crydom

DR22 SERIES

DR22 Series DC Output

Features

  • Output current up to 30 amperes at 200 VAC
  • Built-in heatsink eliminates the need for complex thermal calculations
  • DBC substrate for the best thermal performance
  • LED input status indicator
  • Touch-safe IP20 enclosure
  • Maximum PWM frequency of 1kHz
  • 3750 VAC optical isolation
  • C-UL-US approved

Product Selection

Control Voltage 20A 30A
4-32 VDC DR2220D20U DR2220D30U


Specifications

Output

Description 20A 30A
Absolute Maximum Rated Voltage [VDC] 200 200
Recommended Operating Voltage [VDC] 1-150 1-150
Maximum Leakage Current at Rated Voltage [mArms] 0.1 0.2
DC Load Current, General Purpose UL508 at 40 degrees Celsius [Arms] 20 30
DC Load Current, Motor Starting UL508 FLA/LC B IEC62314 at 40 degrees Celsius [Arms] 4.1 5.4
Minimum Load Current [mA] 5 5
Maximum Peak Current Value [ADC] (10ms) 58 86
Maximum Voltage Drop during Operation at Rated Current [VDC] 0.680 0.535
Maximum On-state Resistance during Operation [RDS-ON] [Ohms] 0.034 0.016
Maximum Pulse Width Modulation Frequency [Hz] 1000 900
UL 508 Motor Parameters [HP (kW)]: 120 VDC 1/3 (0.25) 1/2 (0.37)


Input

Description DC Control
Control Voltage Range 4-32 VDC
Maximum Reverse Voltage -32 VDC
Minimum Turn-On Voltage 4 VDC
Required Turn-Off Voltage 1 VDC
Minimum Input Current (for turn-on) 11 mA
Maximum Input Current 15 mA
Rated Input Impedance Current limited
Maximum Turn-On Time [msec] 75
Maximum Turn-Off Time [msec] 100


General

Description Parameters
Dielectric Strength, Input to Output (50/60Hz) 3750 Vrms
Dielectric Strength, Input/Output to Case (50/60Hz) 2500 Vrms
Minimum Insulation Resistance (at 500V DC) 109 Ohms
Maximum Capacitance, Input/Output 8pF
Operating Ambient Temperature Range -40 to 80 degrees Celsius
Storage Ambient Temperature Range -40 to 100 degrees Celsius
Weight (Typical) 298g
Housing Material UL94 V-0
Heatsink Material Aluminium
DIN Rail Mounting Material Galvanized Steel
Internal Finish Nickel Plating
Input Terminal Screw Torque Range (Nm) 1.5-1.7
Load Terminal Screw Torque Range (Nm) 2-2.2
Humidity for IEC 60068-2-78 93% non-condensing
LED Status Indicator Green
