DCflex series

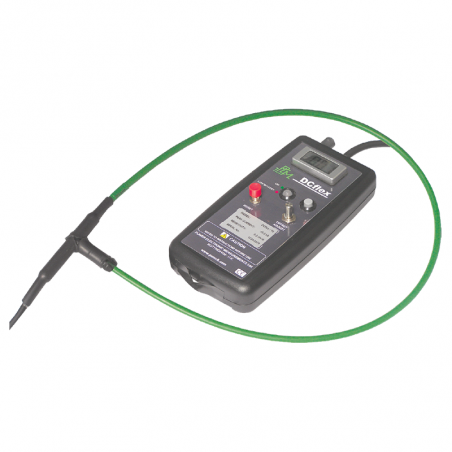

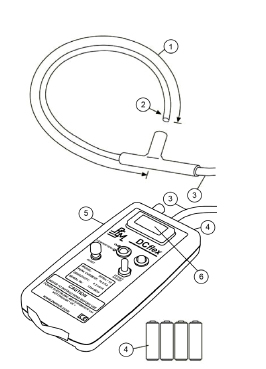

The DCflex current probe from Power Electronic Measurements Ltd is an easy to use, economical, clip-
around DC current probe.
It is suitable for measuring large dc currents of 2kA and greater.
The probe takes a single shot measurement of the DC current with a typical accuracy of ±1%.

Benefits and features:
thin, flexible, clip-around coil easy to insert in confined spaces
accuracy typically ±1%
intrinsically safe, galvanically isolated measurement
 battery powered with an integral display on the enclosure, thus no need for external scopes or meters

Application:
smelting plants
cathodic protection
hydro-generation
DC connection buses between large users
DC link (large inverter motor drives)
plating plants
verifying the performance of large dc shunts or hall effect transducers that are in-situ

Technical data
OUTPUT (Full Scale FS)
1.999V
PEAK CURRENT (FS)
9.999 / 19.99 / 29.99 / 39.99 kA
Other current ratings and outputs are available on request
ACCURACY

CALIBRATED WITH CONDUCTOR CENTRAL
IN THE COIL
±0.4%
- TYPICAL VARIATION OF ACCURACY WITH
POSITION OF A 20cm² BUSBAR IN THE COIL
±0.5% w. m.
- DISPLAY ERROR
0.1%
- TEMPERATURE COEFFICIENT
-0.15% / °C
- ADDITIONAL MEASUREMENT UNCERTAINTY
DUE TO INTERNAL NOISE:
10A pk-pk
MEASUREMENT DRIFT

- SET-UP DRIFT
0.025% w.m. / sek.
- OUTPUT DRIFT


Parameters:
COIL CIRCUMFERENCE
1000 or 1000mm
COIL CROSS SECTION
8.5mm

PEAK COIL VOLTAGE ISOLATION
2kV

TEMPERATURE RANGE
0..120°C
CABLE LENGTH :
1.5m
INTEGRATOR AND DISPLAY
POWER SUPPLY

Battery 4 x AA (1.5V standard alkali batteries)
Typical life battery > 100hrs
INTEGRATOR BOX DIMENSIONS
H = 183mm, W = 93mm, D = 32mm
DISPLAY
1.999V max output (4digit display, 0.001V
resolution) Alternative a version available to
drive a DMM or oscilloscope directly



Catalogue number
Nominal current:
10 - 10 kA
20 - 20 kA
30 - 30 kA
40 - 40 kA
Coil Circumference (mm)
1000 - 1000mm
2000 - 2000mm

Less
Read more

Send an inquiry

Are you interested in this product? Do you need additional information or individual pricing?

Contact us
ASK FOR THE PRODUCT close
