Manufacturer: Sisel

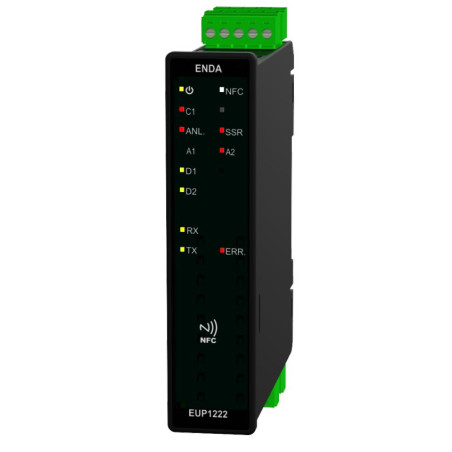

UNIVERSAL TEMPERATURE CONTROLLER CONFIGURABLE VIA APPLICATION

UNIVERSAL TEMPERATURE CONTROLLER CONFIGURABLE VIA APPLICATION

In the ENDA brand offer, for which Dacpol is the official representative, a new version of the universal temperature controller has appeared, dedicated for installation inside the control cabinet (without an integrated display). A temperature sensor (Pt100 or thermocouple) or an analog signal from any transducer can be connected to the controller input. The control output signal can also be selected between analog, voltage for SSR control, or a simple relay. In addition, the EUP1222 controller has other basic functions, like other ENDA brand controllers: additional initiating inputs, the ability to set successive steps in the process, etc. Continuous communication can be carried out using Modbus RS485.

NEW

The EUP1222 controller can communicate, for example, with a smartphone via NFC. The application allows you to read data, select settings, and save them on the device without the need for its power supply!

Technical parameters:

Power supply 24VDC
Power consumption Max. 5VA
EMC EN 61326-1: 2021
Operating temperature 0…+50°C
Supported temperature sensors PT100, J, K, L, T, S, R
Supported analog signals 0-20mA, 4-20mA, 0-10V, 2-10V, 0-25mV, 0-50mV
Protection degree IP20
Relay output Max. load 250V and 5A
SSR control signal 15V 20mA
Selectable output analog signal 0..20mA or 4..20mA

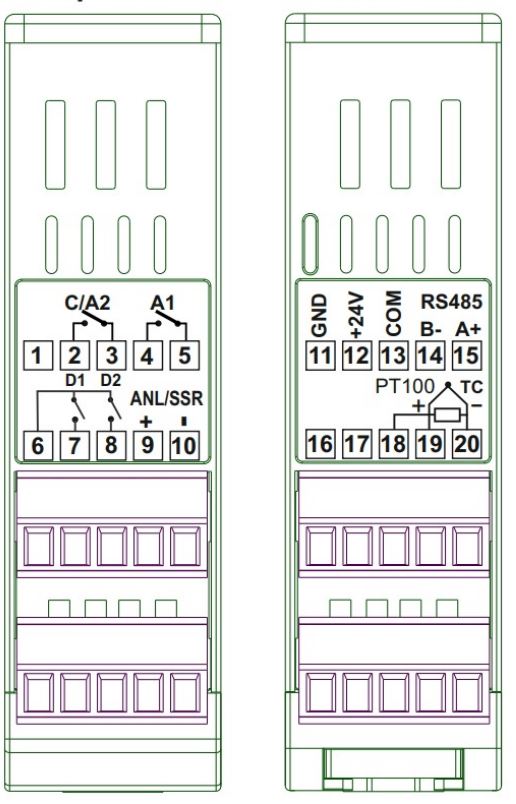

Connection diagram

Dimensions

QR Code for ENDALink application:
