Diode-thyristor modules
  • Diode-thyristor modules

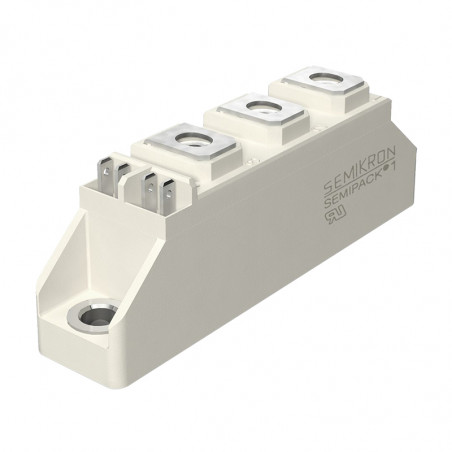

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: SEMIKRON

Diode-thyristor modules

Tip

VRRMVDRM
V
ITAV
A
Tc
°C
ITSM@Tj
=25C IFSM
A
Tj
°C
Rth(j-c)cont.
K/W
Vel.


SEMIPACK®

SKKH 15

600-1600 15 75 320 - 40 ... + 125 1,6 0

SKKH 27

800-1800 27 82 550 - 40 ... + 125 0,9 1

SKKH 42

800-1800 40 85 1000 - 40 ... + 125 0,65 1

SKKH 57/08 G6

800 61 85 1500 - 40 ... + 130 0,42 1

SKKH 57/12 G6

1200

SKKH 57/16 G6

1600

SKKH 57/18 G6

1800

SKKH 57

800-1800 55 80 1500 - 40 ... + 125 0,57 1

SKKH 57 H4

2000-2200

SKKH 72/12 G6

1200 88 85 1600 - 40 ... + 130 0,25 1

SKKH 72/16 G6

1600

SKKH 72/18 G6

1800

SKKH 72

800-1800 70 85 1600 - 40 ... + 125 0,35 1

SKKH 72 H4

2000-2200

SKKH 92/08 G6

800 110 85 2000 - 40 ... + 130 0,20 1

SKKH 92/12 G6

1200

SKKH 92/16 G6

1600

SKKH 92

800-1800 95 85 2000 - 40 ... + 125 0,28 1

SKKH 106/12 G6

1200 122 85 2250 - 40 ... + 130 0,19 1

SKKH 106/16 G6

1600

SKKH 106/18 G6

1800

SKKH 106

800-1800 106 85 2250 - 40 ... + 130 0,28 1

SKKH 122

800-1800 122 88 3600 - 40 ... + 125 0,2 2

SKKH 132

800-1800 130 87 4700 - 40 ... + 125 0,18 2

SKKH 132 H4

2000-2200 132 84 4500 - 40 ... + 125 0,17 2

SKKH 162

800-1800 160 83 5400 - 40 ... + 125 0,17 2

SKKH 162 H4

2000-2200 162 77 5200 - 40 ... + 125 0,16 2

SKKH 172

1400-1800 172 86 5400 - 40 ... + 125 0,16 2

SKKH 250

800-1800 250 85 9000 - 40 ... + 130 0,14 3

SKKH 273

1200-1800 273 85 9000 - 40 ... + 130 0,1 3

SKKH 280

2000-2200 280 79 8500 - 40 ... + 125 0,11 3

SKKH 323

1200-1600 323 84 9500 - 40 ... + 130 0,09 3

SKKH 330

800-1800 330 80 9500 - 40 ... + 130 0,11 3

SKKH 430

1600-2200 430 86 15000 - 40 ... + 125 0,06 5

SKKH 460

1600-2200 460 85 18000 - 40 ... + 130 0,07 5

SKKH 570

1200-1800 570 85 19000 - 40 ... + 135 0,07 5

SKKL 92

800-1800 95 85 2000 - 40 ... + 125 0,28 1

SKNH 56

1200-1800 50 85 1500 - 40 ... + 125 0,57 1

SKNH 91

1200-1800 95 85 2000 - 40 ... + 125 0,28 1
