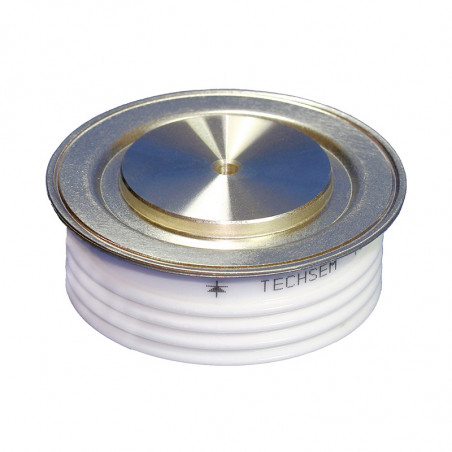

Teches diodes

Features

  • Low forward voltage drop
  • Reverse voltage up to 3800 V
  • Capsule type metal-ceramic packages for double sided cooling


Typical Application

  • All purpose high power rectifier diodes
  • Non-controllable and half-controllable rectifiers
  • High power resistance welding equipment
  • Snubber diodes

ELectrical data


Type VRRM
[V]
IF(AV)
[A]
IFSM
[kA]
I2t
[kA2s]
VFM/IFM
[V/A]
IRRM
[mA]
VFO
[V]
rF
[mΩ]
Rth(j-c)
[°C/W]
Rth(c-hs)
[°C]
Tjm
[°C]
  TC55°C TC85°C 10 ms Tjm
Y24ZPC 1100-2000 670 560 5 125 2.10/1500 16 0.80 0.86 0.080 0.020 175
Y30ZPC 1100-2000 1310 1080 10 500 2.10/3770 30 0.98 0.33 0.045 0.010 175
Y38ZPC 1100-2000 1680 1390 15 1125 1.94/3770 40 0.85 0.29 0.035 0.008 175
Y50ZPC 1100-2000 3000 2490 27 3645 1.57/4500 80 0.89 0.15 0.020 0.005 175
Y76ZPC 1100-2000 6290 5220 60 18000 1.19/6800 200 0.85 0.069 0.010 0.003 175
