Manufacturer: Kerafol

Thermeling two-sided tapes

Double-sided adhesive films

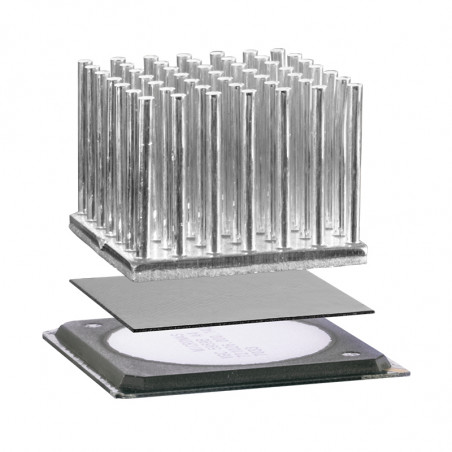

The Adhesive Films KL 90 und KL 91 are thermoconducting, electrically insulating, double sided adhesive films. They have an excellent, permanent adhesive strength with high thermal conductivity and outstanding insulation characteristics at the same time.

Product characteristics
  • Excellent adhesive strenght
  • High thermal conductivity
  • Very good insulation characteristics
  • High flexibility

Packaging
Sheets:
  • 500 x 400 mm (KL90)
  • 500 x 1000 mm (90/10)
Rolls: 500 mm wide
Custom dimensions for request.


Technical data


Material   Thermal conductivity Thermal resistance Breakdown voltage Thickness Hardness
W/mK K/W kV mm Shore A
KL90 Thermal conducting, adhesive material without fibreglass 1.40 0.52 20.0 0.300 45
KL91 Thermal conducting, adhesive material with fibreglass 1.35 0.55 20.0 0.300 59
