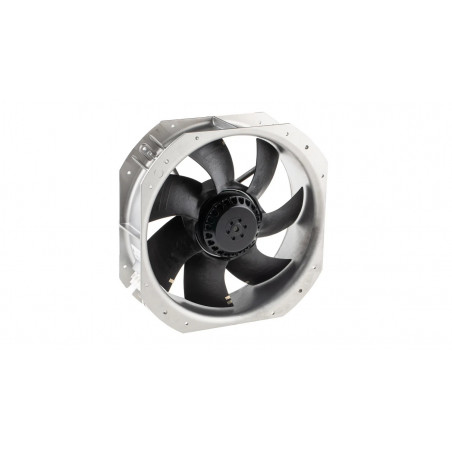

W2E250-HP06-01 compact axial fan AC
  • W2E250-HP06-01 compact axial fan AC

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Ebmpapst

W2E250-HP06-01 compact axial fan AC

  • W2E250-HP06-01
  • Phase 01-01-01
  • Nominal voltage 230 / 230 / 230 VAC
  • Frequency 50 / 60 / 60 Hz
  • Type of data definition ml / ml / ml
  • Valid for approval / standard CE / CE / UL211
  • Speed 2320 / 2300 / 2300
  • Power input 125 / 160 / 166 W
  • Current draw 0.55 / 0.71 / 0.74 A
  • Max. back pressure 100 / 110 / 110 Pa
  • Min. ambient temperature -25 / -25 / -25 °C
  • Max. ambient temperature 60 / 50 / 50 °C
  • Starting current 0.83 / 0.81 / 0.81 A
  • Motor capacitor 3 / 3 / 3 µF
  • Capacitor voltage 400 / 400 / 400 VDB
836.40 PLN
836.40 PLN Gross price / pcs.
680.00 PLN Net price / pc.
Tax included
Availability: Available quantity: 50
ASK FOR THE PRODUCT close
Thank you for sending your message. We will respond as soon as possible.
ASK FOR THE PRODUCT close
Browse
send an inquiry

Add to Wishlist

You must be logged in

  • Phase 01-01-01
  • Nominal voltage 230 / 230 / 230 VAC
  • Frequency 50 / 60 / 60 Hz
  • Type of data definition ml / ml / ml
  • Valid for approval / standard CE / CE / UL211
  • Speed 2320 / 2300 / 2300
  • Power input 125 / 160 / 166 W
  • Current draw 0.55 / 0.71 / 0.74 A
  • Max. back pressure 100 / 110 / 110 Pa
  • Min. ambient temperature -25 / -25 / -25 °C
  • Max. ambient temperature 60 / 50 / 50 °C
  • Starting current 0.83 / 0.81 / 0.81 A
  • Motor capacitor 3 / 3 / 3 µF
  • Capacitor voltage 400 / 400 / 400 VDB
