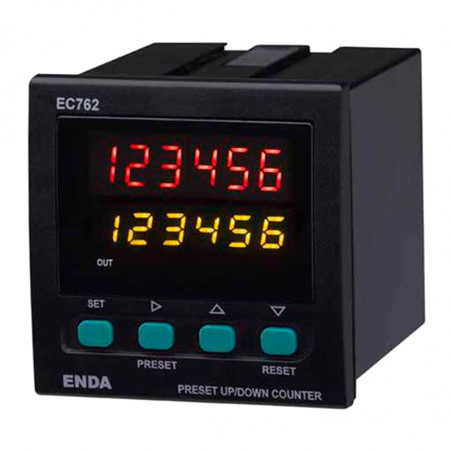

EC762 counter Enda

* 72x72mm sized.
* 2x6 digits display.
* Easy to use by front panel keypad.
* Counting up and down with a 2 channel inputs having 90° phase shift.
* Input frequency can be selectable.
* Prescaler factor can be adjusted between 0.001 and 9.99999.
* Decimal point can be adjusted between 1. and 5. digits.
* Sensor type can be selected as PNP, NPN or Encoder.
* Single set-points control is made by a relay outputs.
* Output can be energized continuously or just for a time interval of 0.1
to 999.9 seconds.
* Selectable functional reset input.
* Input offset feature.
* Parameter access protection on 3 levels.
* Easy connection by removable screw terminal.
* CE marked according to European Norms.


- Dimensions
72x72x97mm
- Indicator
LED, 6 digits, height 9,1m for counted value,  6 digits, height 7,1mm for set value
- Count inputs (CP1, CP2)
2 channels (Max. 10kHz, 5V to 30V pulse)
- Frequency (Hz)
25, 500, 1000, 2000, 5000, 7500, 10000Hz (selectable by programming)
- Control output (OUT)
Relay : 250V AC, 2A (for resistive load), NO+NC
Open collektor output (S.S. OUT): Max. 30V DC, 100mA.
- Reset input
PNP: Positive reset (5V to 30V pulse with adjustable pulse time between 2ms and 50ms)
NPN: GND terminal is connected to the RESET IN terminal.
- Supply
230V AC +10% -20% or 24V AC ±10%, 50/60Hz or optional 9-30V DC / 7-24V AC ±10% SMPS module.
- Power consumption
7VA
- Auxiliary power supply
12VDC, max. 50mA
- Ambient/storage temperature
0... 50°C
- Keyboard
Microswitch
- Data storage
EEPROM (minimum 10 years)
- Wiring
2.5mm² screw-terminal connections
- Weight
405g


Type Supply voltage
EC762 230V AC
EC762-SM 9-30VDC/7-24VAC


Dimensions:

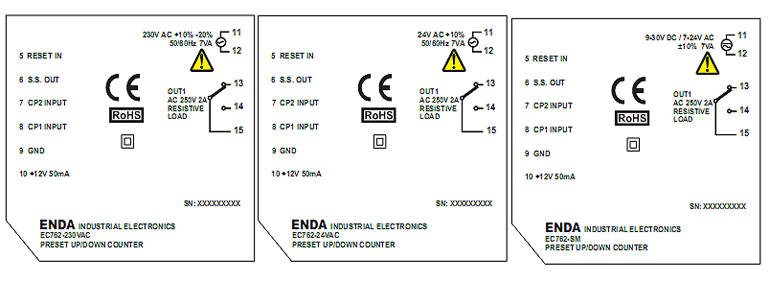

Connection scheme

Less
Read more

Send an inquiry

Are you interested in this product? Do you need additional information or individual pricing?

Contact us
ASK FOR THE PRODUCT close
Thank you for sending your message. We will respond as soon as possible.
ASK FOR THE PRODUCT close
Browse
send an inquiry

Add to Wishlist

You must be logged in

* 72x72mm sized.
* 2x6 digits display.
* Easy to use by front panel keypad.
* Counting up and down with a 2 channel inputs having 90° phase shift.
* Input frequency can be selectable.
* Prescaler factor can be adjusted between 0.001 and 9.99999.
* Decimal point can be adjusted between 1. and 5. digits.
* Sensor type can be selected as PNP, NPN or Encoder.
* Single set-points control is made by a relay outputs.
* Output can be energized continuously or just for a time interval of 0.1
to 999.9 seconds.
* Selectable functional reset input.
* Input offset feature.
* Parameter access protection on 3 levels.
* Easy connection by removable screw terminal.
* CE marked according to European Norms.


- Dimensions
72x72x97mm
- Indicator
LED, 6 digits, height 9,1m for counted value,  6 digits, height 7,1mm for set value
- Count inputs (CP1, CP2)
2 channels (Max. 10kHz, 5V to 30V pulse)
- Frequency (Hz)
25, 500, 1000, 2000, 5000, 7500, 10000Hz (selectable by programming)
- Control output (OUT)
Relay : 250V AC, 2A (for resistive load), NO+NC
Open collektor output (S.S. OUT): Max. 30V DC, 100mA.
- Reset input
PNP: Positive reset (5V to 30V pulse with adjustable pulse time between 2ms and 50ms)
NPN: GND terminal is connected to the RESET IN terminal.
- Supply
230V AC +10% -20% or 24V AC ±10%, 50/60Hz or optional 9-30V DC / 7-24V AC ±10% SMPS module.
- Power consumption
7VA
- Auxiliary power supply
12VDC, max. 50mA
- Ambient/storage temperature
0... 50°C
- Keyboard
Microswitch
- Data storage
EEPROM (minimum 10 years)
- Wiring
2.5mm² screw-terminal connections
- Weight
405g


Type Supply voltage
EC762 230V AC
EC762-SM 9-30VDC/7-24VAC


Dimensions:


Connection scheme

Less
Read more
