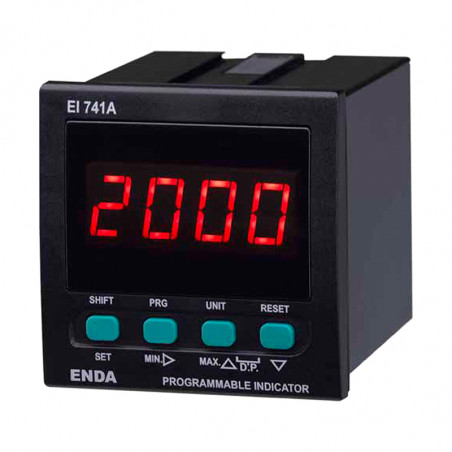

Programmable indicator EI741A

Dimensions	72x72mm.
Display:	4 digits.
Easy to use by front panel keypad.
Scale regulation	-1999...4000.
4 standard input:	0...20mA, 4...20mA, 0...1V, 0...10V.
Maximum and minimum measurement values are registered. The maximum or the minimum values can be hold on the display.

ENVIRONMENTAL CONDITIONS
- Ambient/storage temperature	0...50°C / -25...70°C
- Max. relative humidity	80% (temp. <31°C)
- Rated pollution degree	According to EN 60529 Front panel : IP65 Rear panel : IP20
- Height	max 2000m

Do not use the device in locations subject to corrosive and flammable gases.

ELECTRICAL CHARACTERISTICS

- Supply	230VAC +10%-20% lub 24VAC±10% lub9-30VDC/7-24AC ±10%SMPS
- Power consumption	< 7VA
- Wiring	2.5mm² screw-terminal connections
- Date retention	EEPROM (Min. 10 years)
- EMC	EN 61326-1: 1997, Al: 1998, A2: 2001
- Safety requirements	EN 61010-1: 2001 (pollution degree 2, overvoltage category II, measurement category I)

EI741A must not be used in location where measurement category is II, III or IV.

Input type
	Measurement range		Measurement accuracy	Input impedance
	Min.	Maks.
0...1VDC	0 V	1,1V	±0.5% (of full scale)	Approx. 11kΩ
0...10V DC	0 V	14V	±0.5% (of full scale)	Approx. 11kΩ
0...20mA DC	0 mA	25mA	±0.5% (of full scale)	Approx. 5kΩ
4...20mA DC	0 mA	25mA	±0.5% (of full scale)	Approx. 5kΩ

In the current measurement mode input impedance is should not be connected to the input terminals. Otherwise, the device will be broken down. To change the input type from voltage to a current measurement mode while the device is operating, first, leave out the voltage inputs. Then, change input type to one of the current measurement modes.

OUTPUTS
- Auxiliary power supply	12V DC, max. 50mA (unregulated) or 8V DC, max. 50mA (regulated) or 5V DC max. 50mA (regulated)
HOUSING
- Housing type	Suitable for flush-panel mounting according to DIN 43 700.
- Dimensions	72 x 72 x 97mm
- Weight	Approx. 350g
- Enclosure material	plastic

While cleaning the device, solvents (thinner, benzine, acid etc.) or corrosive materials must not be used.

Type	Supply voltage	Additional supply input*
EI741A	230V AC
EI741A-ASXX	230V AC	+
EI741A-24AC	24V AC
EI741A-24AC-ASXX	24V AC	+
EI741A-SM	9-30VDC / 7-24VAC
EI741A-SM-ASXX	9-30VDC / 7-24VAC	+
