Manufacturer: A.D. VIGANÒ

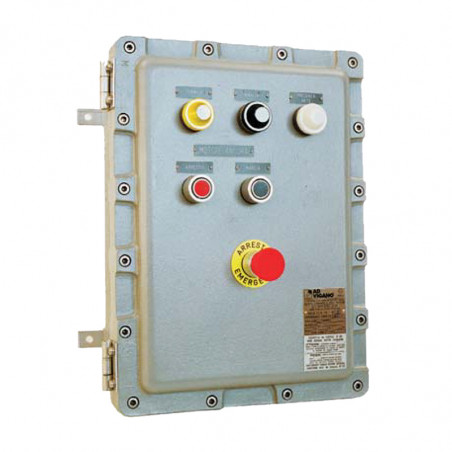

EJB series desktop, EXD

Protection mode:
II 2GD Ex d IIB+H2 T5, Ex tD A21 T100°C IP66 (Ambient Temperature -40°C/-60°C, +55°C)
II 2(1)GD Ex d[ia] IIB+H2 T5 Ex tD[iaD] A21 T100°C IP66 (Ambient Temperature -20°C, +40°C

Certificate: ATEX, IECEx, GHOST-R.

The enclosures series “EJB” are suitable for the installation of terminals and standard electrical equipment such as switches, fuses,
contactors,etc.They can be equipped with intrinsically safety barrier, to command electrical apparatus placed in zone 0.
The enclosures are fitted with flanged covers.
Materials: aluminum copper free (or cast iron on request), bolt and screws in stainless steel.
Threads: on request (GAS UNI 6125, NPT, ISO metric).
Standard painting: Standard grey epoxy RAL7037, internal orange anticondensation RAL2004. For other colours specify type of RAL.


Type Volume
[L]		 Weight
[Kg]		 External dimension Internal dimension Fixing dimension Cover screw   Internal plate dimension
A B C D a b c d E F G H Øa no ØxL Ø

EJB9A

 267 173 650 870 460 470 535 755 380 335 680 630 670 460 14 32 M16x50 M6 720 500

EJB9

 205 155 650 870 360 370 535 755 280 235 680 630 670 460 14 32 M16x50 M6 720 500

EJB8B

 134,52 83,86 530 740 343 351 440 650 296 287 575 500 540 430 13 28 M12x45 M6 416 620

EJB8A

 113,73 86 530 740 282 290 440 650 230 220 575 500 540 430 13 28 M12x45 M6 416 620

EJB8

 96,2 79,5 530 740 230 238 440 650 167 153 575 500 540 430 13 28 M12x45 M6 416 620

EJB7B

 90,11 68 440 640 320 328 350 550 280 266 480 425 460 335 13 24 M10x45 M6 312 512

EJB7A

 76,03 57,5 440 640 270 278 350 550 230 216 480 425 460 335 13 24 M10x45 M6 312 512

EJB7

 61,95 49,5 440 640 220 228 350 550 180 166 480 425 460 335 13 24 M10x45 M6 312 512

EJB6A

 49,4 32,5 380 500 260 268 300 420 223 209 360 360 385 290 11 18 M10x30 M6 270 390

EJB6

 39,9 30,5 380 500 210 218 300 420 173 159 360 360 385 290 11 18 M10x30 M6 270 390

EJB5B

 43,96 28 340 460 290 296 260 380 250 247 360 360 385 255 9 16 M8x30 M6 230 350

EJB5A

 37,53 26 340 460 240 246 260 380 208 197 320 320 350 255 9 16 M8x30 M6 230 350

EJB5

 29,71 23,5 340 460 190 196 260 380 159 147 320 320 350 255 9 16 M8x30 M6 230 350

EJB4A

 25,2 18 280 400 225 231 210 330 196 184 280 260 280 205 9 14 M8x25 M6 180 300

EJB4

 19,6 16 280 400 175 181 210 330 146 134 280 260 280 205 9 14 M8x25 M6 180 300

EJB3A

 16,1 12,5 230 350 200 206 160 280 173 162 240 210 230 160 9 10 M8x25 M6 140 260

EJB3

 12,88 11,5 230 350 160 166 160 280 133 122 240 210 230 160 9 10 M8x25 M6 140 260

EJB2

 8,1 7,5 205 255 145 151 150 200 117 110 180 195 215 150 7 10 M6x20 M6 130 180

EJB1

 4,31 4,5 145 205 145 151 90 150 119 112 130 135 155 90 7 8 M6x20 M6 70 130
