Manufacturer: A.D. VIGANÒ

CSA series desktop, EXD

Protection mode:
II 2GD Ex ed II T6 T85°C Ex tD A21 IP66 (Amb.temperature -20°C to +55°C)

Certificate:ATEX, IECEx, GHOST-R.

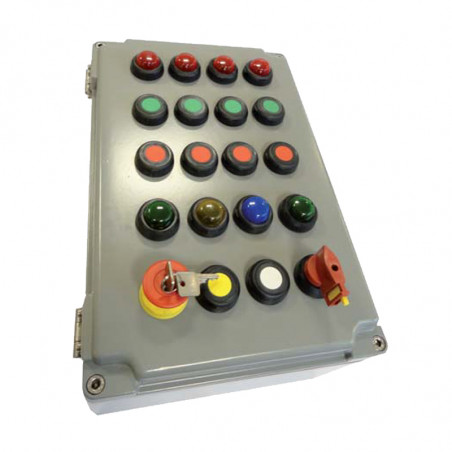

Enclosures series “CSA…” are used as signaling and command box with operators on cover (pushbytton, indicator lights, selectors).
Materials: Body and cover: alluminium. Bolt and screws: stainless steel
Threads: on request GASUNI 6125, NPT, ISO Metric.
Standard painting:External grey epoxy RAL 7037, internal anticondensation orange RAL2004.



Enclosure series CSA increased safety EXd

Type External dimensions Internal dimensions Fixing holes Volume Weight
A D E F G H Ø Dm3  Kg

CSA0

128 260 174 246 114 154 210 108 6,5 57,9 3,2

CSA 11

260 260 174 246 246 154 210 240 6,5 117,7 4,7

CSA 12

326 260 174 246 312 154 210 306 6,5 147,5 5,3

CSA 13

393 260 174 246 379 154 210 373 6,5 177,8 6,4

CSA 35

480 480 185 450 450 147 430 - 10 397,9 17,1
