Gub ... h series housing with a revision window

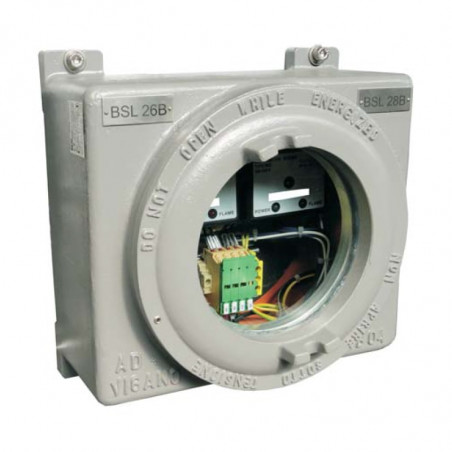

Enclosure in light alloy copper free with transparent inspection window in thermoresistant toughtened glass and extension suitable for containing the command, control, measure and regulation electrical apparatuses.

Type External dimension
 [mm]		 Internal dimension
[mm]		 Fixing dimension [mm] Weight [kg]
A B C D øE a b c d e øf H I1 I2

GUBH

 133 133 117 169 62 103 103 60 74 78 77 7 152 99 2.5

GUB0H

 160 160 129 206 86 132 132 70 84 88 102 9 180 122 3.6

GUB01H

 179 179 108 225 103 148 148 50 65 71 118 9 202 149 3.0

GUB02H

 179 193 142 233 103 148 162 85 99 109 118 9 207 150 4.8

GUB03H

 203 203 147 248 120 172 172 90 102 110 138 9 230 168 5.0

GUB04H

 257 298 166 300 150 223 264 90 109 116 182 9 276 246 13.0

GUB04AH

 257 298 208 300 150 223 264 135 150 158 182 9 276 246 13.5

GUB05H

 293 325 220 349 187 262 294 150 157 162 207 13 330 285 15.0

GUB06H

 460 460 285 546 290 420 420 170 204 220 332 14 510 420 53.5

Type External dimension
[mm]		 Internal dimension
[mm]		 Fixing dimension
[mm]		 Weight
[kg]
A B C D øE a b c d e øf H I1 I2

GUBH130

 133 133 200 169 62 103 103 130 154 158 86 7 152 99 -

GUB0H150

 160 160 220 206 86 132 132 150 173 177 113 9 180 122 -

GUB01H140

 179 179 210 225 103 148 148 140 166 172 127 9 202 149 -

GUB01H190

 179 179 260 225 103 148 148 190 216 222 127 9 202 149 -

GUB02H175

 179 193 240 233 103 148 162 175 200 210 127 9 207 150 -

GUB02H225

 179 193 290 233 103 148 162 225 250 260 127 9 207 150 -

GUB03H140

 203 203 240 248 120 172 172 140 193 200 145 9 230 168 -

GUB03H270

 203 203 340 248 120 172 172 270 293 300 145 9 230 168 -

GUB04H153

 257 298 240 300 150 223 264 153 181 188 196 9 276 246 -

GUB04H250

 257 298 340 300 150 223 264 250 281 288 196 9 276 246 -

GUB04AH195

 257 298 280 300 150 223 264 195 222 230 196 9 276 246 -

GUB04AH295

 257 298 380 300 150 223 264 295 322 330 196 9 276 246 -

GUB05H245

 293 325 340 349 187 262 294 245 276 280 213 13 330 285 -

GUB05H355

 293 325 440 349 187 262 294 355 376 380 213 13 330 285 -
