Manufacturer: A.D. VIGANÒ

Camera Camera Housing "VB"

Protection mode:
Ambient Temperature -40°C, +40°C/+55°C) II 2GD Ex d IIC T6/T5 Ex tD A21 IP 66 T85°C/100°C (

Certificate: ATEX, IECEx, GHOST-R.

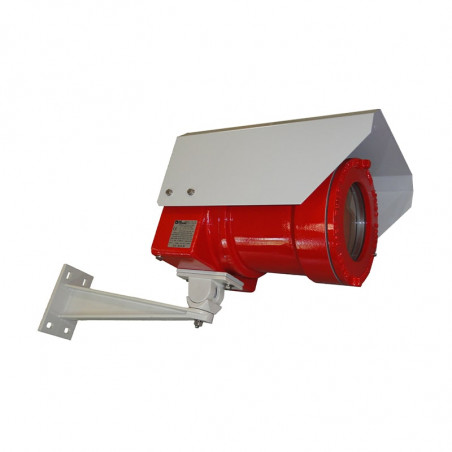

The videocamera box series VB.. have a cylindrical body with two threaded covers at the ends, one for inspection and one
with window. Both can be removed for internal inspection. The external surface can be drilled for the mounting of external
componenst like suncover or fixing bracket.

Videocamera box VB

  VB1 VB2 VB3
øA 114 170 190
B min 170 220 320
B max 230 420 520
B1 min 250 300 500
B1 max 300 400 600
øW 62 103 120
øa 78 129 148
b min 145 190 290
b max 195 390 490
Videocamera box VB
