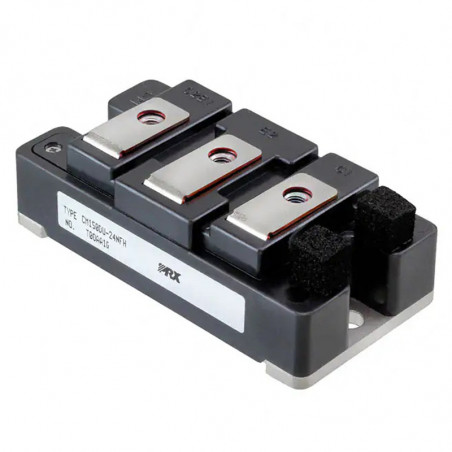

Fast IGBT Modules - NFH Series

Technical data

  • very low turn-off losses due to the use of CSTBT structure with carrier lifetime control,
  • optimized for 50kHz hard switching frequency
  • excellent characteristics for "soft connection",
  • low connection inductance.

Electrical data

TypeMaximum valuePackage
Vces
[A]
lc
[A]
Pc
[W]
600V
CM100DUS-12F600100350NFH3
CM150DUS-12F600150520NFH3
CM200DU-12NFH600200590NFH3
CM300DU-12NFH600300780NFH1
CM400DU-12NFH600400960NFH1
1200V
CM100DU-24NFH1200100560NFH3
CM150DU-24NFH1200150650NFH3
CM200DU-24NFH1200200830NFH1
CM300DU-24NFH12003001130NFH1
CM400DU-24NFH12004001040NFH2
CM600DU-24NFH12006001550NFH2

Note:
Modules of this series are available in a half-bridge configuration.

Housing NFH1
MODUŁY IGBT SZYBKIE - SERIA NFH obudowa CM300DU-12NFH, CM400DU-12NFH, CM200DU-24NFH, CM300DU-24NFH
Housing NFH2
MODUŁY IGBT SZYBKIE - SERIA NFH - obudowa CM400DU-24NFH, CM600DU-24NFH
Housing NFH3
MODUŁY IGBT SZYBKIE - SERIA NFH - obudowa CM100DUS-12F, CM150DUS-12F, CM200DU-12NFH, CM100DU-24NFH, CM150DU-24NFH
