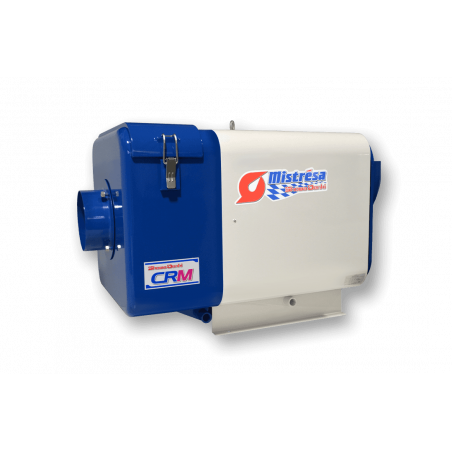

CRM-H15-S12 oil mist separators
  • CRM-H15-S12 oil mist separators

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Showa Denki Co.,Ltd.

CRM-H15-S12 oil mist separators

  • CRM-H15-S12
  • Current 6.9 / 7.0 / 7.0 A
  • Power 1.5 kW
  • Power supply Trójfazowe 50 Hz
  • Frequency 50 / 60 / 60 Hz
  • Sound intensity 81 / 83 dB
  • Maximum temperature 50 °C
  • Maximum volume for the 50 Hz 18 m³/min
  • Maximum pressure 50 Hz 1.6 kPa
  • Maximum volume for the 60 Hz 21.5 m³/min
  • Maximum pressure 60 Hz 2.25 kPa
  • Weight 67 kg
Mistres collects the oil mist, which is generated by the machine tool machining stations in order to maintain a comfortable environment. Removal of oil mist from the air helps to protect the health of workers, and also prevents the negative secondary effects such as the accumulation of oil on the floor which may cause falls. Type levels (CRM CRM-type S) is available in the filter and filter-free, so customers can choose the best option for your application.
