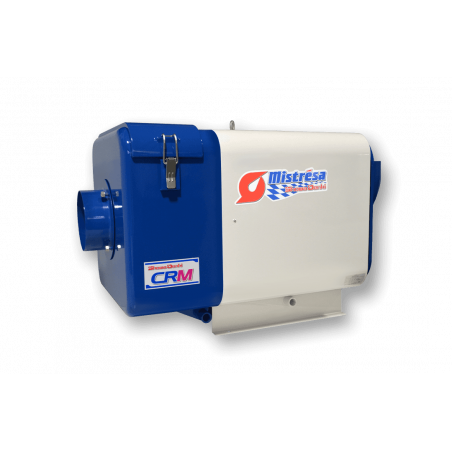

CRM-H22-S21 oil mist separators
  • CRM-H22-S21 oil mist separators

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Showa Denki Co.,Ltd.

CRM-H22-S21 oil mist separators

  • CRM-H22-S21
  • Current 10.2 / 10.4 / 10.4 A
  • Power 2,2 kW
    2.2 kW
  • Power supply Trójfazowe 50 Hz
  • Frequency 50 / 60 / 60 Hz
  • Sound intensity 83 / 86 dB
  • Maximum temperature 50 °C
  • Maximum volume for the 50 Hz 17.5 m³/min
  • Maximum pressure 50 Hz 1.7 kPa
  • Maximum volume for the 60 Hz 20.5 m³/min
  • Maximum pressure 60 Hz 2.4 kPa
  • Weight 77 kg
Mistres collects the oil mist, which is generated by the machine tool machining stations in order to maintain a comfortable environment. Removal of oil mist from the air helps to protect the health of workers, and also prevents the negative secondary effects such as the accumulation of oil on the floor which may cause falls. Type levels (CRM CRM-type S) is available in the filter and filter-free, so customers can choose the best option for your application.
