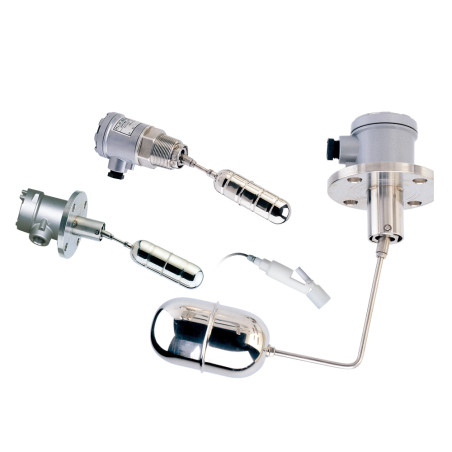

FFX Side Mount Float Gauge

FFX FLOAT LEVEL INDICATORS FOR SIDE MOUNTING

The FF series comprises magnetic float level indicators specifically designed for side mounting of a tank, where the float is positioned horizontally. It is suitable for industrial use with a wide range of fluids, in which the float level switch can operate at a fluid density as low as 0.25 relative density. A change in the liquid level will cause the float to move up or down accordingly. The magnetic float level indicator in the FF series features an SPDT reed switch or an SPDT micro switch output and is available in stainless steel or polypropylene. Marine certified and explosion-proof versions are available.

Main Features:

• Wide range of flanged and threaded process connections for side mounting

• Construction in stainless steel or polypropylene

• Floats in almost any liquid

• Capable of operating at high temperatures up to 350°C

• Explosion-proof and corrosion-resistant versions available

• Micro switch or reed switch output

• Units with marine certification

Applications:

• Water/Wastewater

• Chemical Industry

• Marine Applications

• Many others

Technical Data:

Technical data for a specific model can be found in the manufacturer's catalog sheet.
