Manufacturer: FLEXICON

Peszel FPR - standard flexible flexible pezel from nylon (PA6)

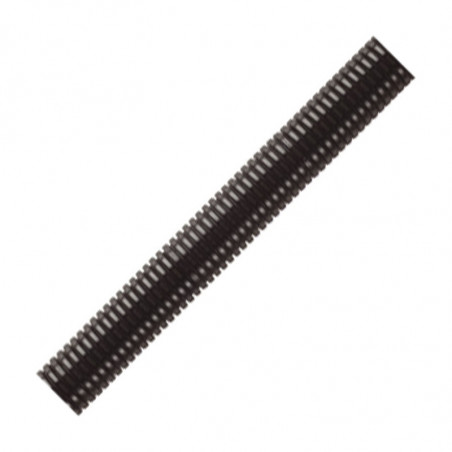

FPR - Non-Metallic Conduits – Standard weight nylon (highly flame retardant PA6) corrugated flexible conduit

Peszel FPR – standardowy elastyczny karbowany peszel z nylonu (PA6)

Properties:
Material; Nylon PA6 (Highly flame retardant)
Colour black
Fire Performance:  Highly flame retardant, halogen, sulphur and phosphorous free
Temperature Performance:
• Static: -40OC +120OC
• Dynamic -20OC +100OC
IP Rating:
• IP66 with FPA fittings
• IP66+67+68+69K with FPAX fittings
Compression Strength: 75kg/100mm
Pull-off (Tensile) strength : 40kg FPA [&] FPAX fittings
25kg FLK fittings
UV resistant

Typical Applications;

Peszel FPR – standardowy elastyczny karbowany peszel z nylonu (PA6) zastosowanie wojsko Defence Peszel FPR – standardowy elastyczny karbowany peszel z nylonu (PA6) zastosowanie konstukcje Construction
Peszel FPR – standardowy elastyczny karbowany peszel z nylonu (PA6) kolejnictow Rail

Compliance, Approvals [&] Accreditation;
Peszel FPR – standardowy elastyczny karbowany peszel z nylonu (PA6) certyfikaty
EN 61386 Classification Available on request

File No. E229161
Compliant to LUL Standard 1-085-A3
London Underground Certificate No. 298


Nominal Size Pitch
F= fine
C= coarse		 Part No Reel Length
[m]		 OD
[mm]		 Min ID
[mm]		 Min inside Bend
radius R
[mm]		 Compression
Strength
kg/100mm		 Weight
[g/m]
10 F

FPR10B

 50 10.0 6.3 15 100 19
13 F

FPR13B

 50 13.0 9.8 25 75 28
16 F

FPR16B

 50 15.8 11.8 35 60 38
20 C

FPR20B

 50 20.0 14.8 45 75 56
21 F

FPR21B

 50 21.2 16.7 45 75 60
25 C

FPR25B

 50 25.0 19.1 50 90 80
28 C

FPR28B

 50 28.5 21.7 50 90 100
34 C

FPR34B

 50 34.5 28.1 60 90 135
42 C

FPR42B

 25 42.5 35.5 70 100 165
54 C

FPR54B

 25 54.5 47.2 80 100 235
67 C

FPR67B

 10 67.2 56.3 130 75 365
