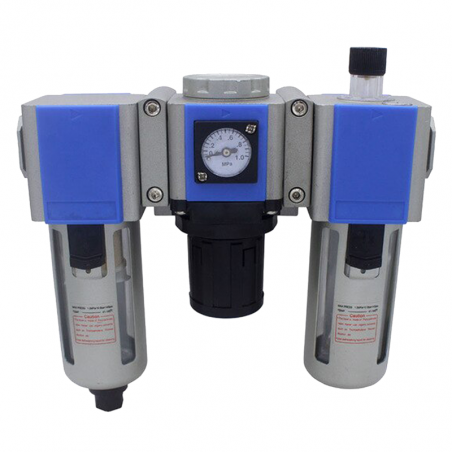

F.R.L G series
  • F.R.L G series

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Norgren

F.R.L G series

- Available versions: automatic, half-automatic, manual.
- Easy to use and assemble.
- Reliable pressure control.
- Drying
- Oiling


Series GC GFC GFR GF GR GL
Medium Air
Terminal 1/8"  1/4"  3/8"  1/2"  3/4"  1"
Filter 40µm lub 5µm /
Operation pressure 1.5~9.0bar (0.15~0.9MPa) (21~128psi)
Max pressure 10.0bar (1.0MPa) (145psi)
Max pressure 15.0bar (1.5MPa) (215psi)
Temperature °C -20 - +70
Dryer container(CC) 10    40    80    230 / /
Oiling container (CC) 25  75  160  380 / / / 25  75  160  380
Recommended lubricant

ISO VG  32  or equivalent

/ / / ISO  VG  32 or equivalent
