Manufacturer: HEITEC AG

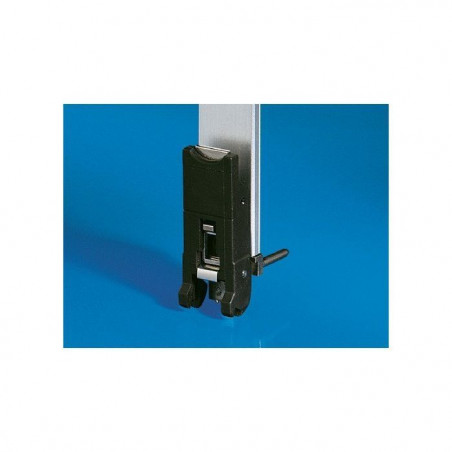

3688790 Type VII metal handle, top

  • 3688790
  • Version górny
  • Width (HP) 42 HP
  • to PCB depth 220 mm
  • Top- / Bottom covers wentylowany (szczeliny wentylacyjne)
  • Packed after 1 część
Metal (telecom)
For inserting and removing PCBs with a high connector pin-count (up to 815 N). This handle was specifically designed for use in telecom applications.
  • Insertion/removal function
  • Optionally with ½ HP offset PCB attachment, e. g. for component mounting on both sides
  • Minimum front space requirements due to foldup handle
  • Keyable
  • Optional integral micro-switch for “live insertion” applications
  • ES D pin to dissipate static charges prior to making contact with the connectors and for precise positioning of the board type plug-in unit
  • Metal design for use in aggressive atmospheres
Material: Die-cast zinc

Supply includes: Assembly parts.

Note: Insertion only when used with front horizontal rails, with 10 mm extension (B, B1, B2)
