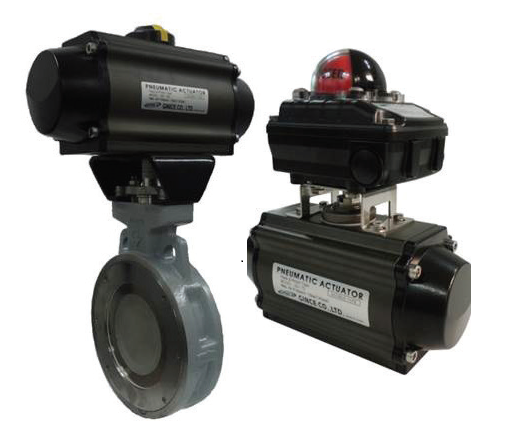

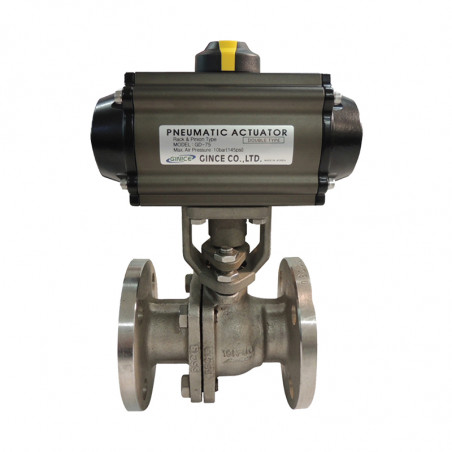

Gd / s
Gd / s

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: GINICE KOREA

Gd / s


Features:

  • Optimized actuator for a ball/butterfly valves
  • Durable high grade aluminum alloy housing
  • Hard anodizing for corrosion resistance
  • Rack [&] Pinion type
  • Double acting or Spring return actuator
  • Valve and accessories mounted directly into actuator
  • ISO5211/DIN3337 standard mounting base
  • NAMUR standard, VDI/VDE 3845
  • ±5⁰ adjustable travel stopper bolt
  • Wide range torque


Technical data

Mechanical structure Rack [&] Pinion type
Operating type Double acting or Spring return
Working pressure 2.5 ~ 8bar
Working temperature -20℃ ~ +80℃ (-35℃ available as option)
Operating media Clean dry air
Operating rotation 90˚± 5˚
Material Aluminum alloy
Treatment Hard anodizing or Nickel plated
Less
Read more
