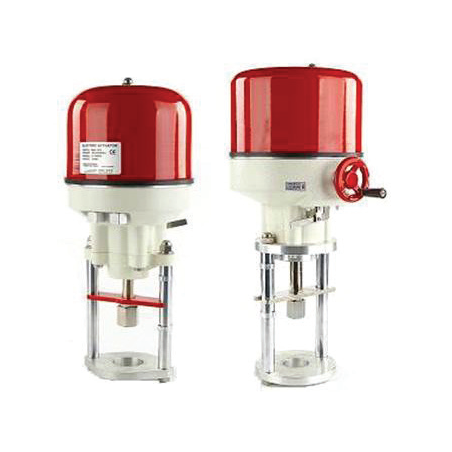

Electric linear actuator GEA-250P
  • Electric linear actuator GEA-250P

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: GINICE KOREA

Electric linear actuator GEA-250P


Features:

  • Proportional or On-Off Electric Linear Actuator
  • Self-Calibration using the auto setting button
  • Free maintenance due to the durable structure and reliable operating
  • Valve is closed or stop automatically in case input signal is removed or failed.
  • Manual override with handle-wheel
  • Metal case, strong structure against impact or dust
  • Selectable input signal 4~20mA , 0-10VDC or 2-10VDC
  • Compatible with digital temperature controller, DDC system or PLC system for the optimal performance


Technical data

Item GEA-250P
Nominal Stroke (mm) 80mm
Nominal Force (KN) 25000N(25.0)
Operating Time (Sec) 210s (0.4mm/s)
Power Supply (V) 220VAC ± 10%
Operating mode Modulating or On-Off
Input Signal 4~20mA, 0-10VDC or 2-10VDC
Output Signal Same as input signal
Operation Temperature -15 ~ 60℃
Humidity 5 ~ 95% Rh
Enclosure IP 54 (DIN4050)
Conduit Entries PF1/2ｘ 2EA
Net Weight (Kg) 21.3Kg
