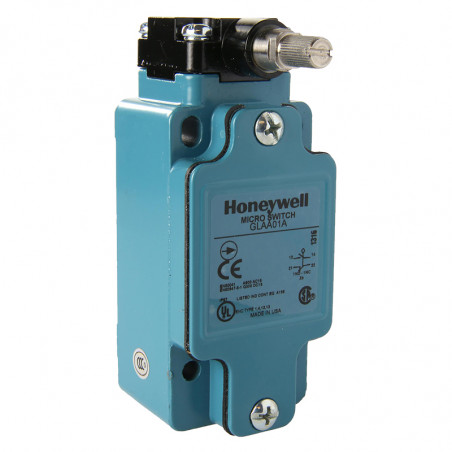

GLA - switch compatible with EN50041 standard in metal casing
  • GLA - switch compatible with EN50041 standard in metal casing

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Honeywell

GLA - switch compatible with EN50041 standard in metal casing

GLF-(ILED) 12...250VAC/DC; GLH-(2LED) 18...30VDC

Technical data

Mechanical life: up to 15 million operations
Degree of protection: IP67
Temperature range: -25...85°C
Storage: -40...85°C
Approvals: IEC 60947-5-1
  EN 60947-5-1
  AC15 A300/A600
  DC13 Q300
  UL & CSA
Vibration (Actuator not fitted) 10g conforming to IEC 68-2-6
Shock (Actuator not fitted) 50g conforming to IEC 68-2-27

Drawing 1 [mm/in]

  Fast contact
1NZ /1NO
Lever type
O.F. - Operating Force
R.F. - Release Force
R.T. - Pretravel
O.T. - Overtravel
D.T. - Differential travel
O.P. - Operating Position
F.P. - Free Position
GLA - WYŁĄCZNIK WG NORMY EN50041 W METALOWEJ OBUDOWIE GLA - WYŁĄCZNIK WG NORMY EN50041 W METALOWEJ OBUDOWIE
Side lever
with metal roll


Pusher

Pusher with roll
* - According to IEC/EN60947-5-1-3
Upper lever with roll


Spring bar
Dimensions [mm/in]

  Low contact
Disconnect before turning on
1NZ / 1NO
Low contact
Disconnect before turning off
1NZ /1NO
Lever type
O.F. - Operating Force
R.F. - Release Force
R.T. - Pretravel
O.T. - Overtravel
D.T. - Differential travel
O.P. - Operating Position
F.P. - Free Position

Side lever
with metal roll


Pusher

Pusher with roll
* - According to IEC/EN60947-5-1-3
Upper lever with roll


Spring bar
Dimensions [mm/in]


  Low contact
2NZ
Fast contact,
two-pole
2NZ/2NO
Lever type
O.F. - Operating Force
R.F. - Release Force
R.T. - Pretravel
O.T. - Overtravel
D.T. - Differential travel
O.P. - Operating Position
F.P. - Free Position

Side lever
with metal roll


Pusher

Pusher with roll
* - According to IEC/EN60947-5-1-3
Upper lever with roll


Spring bar
(GLA)
(GLF, GLH)
Dimensions [mm/in]
