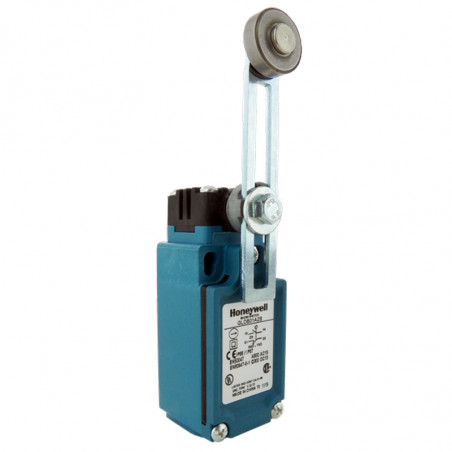

Photos are for informational purposes only. View product specification
please use latin characters
Mechanical life: | up to 15 million operations |
Degree of protection: | IP66 |
Temperature range: | -25...85°C |
Storage: | -40...85°C |
Approvals: | IEC 60947-5-1 |
EN 60947-5-1 | |
AC15 A300 | |
DC13 Q300 | |
UL & CSA | |
Vibration | 10g conforming to IEC 68-2-6 |
Shock | 50g conforming to IEC 68-2-27 Terminal marking to EN 50013 |

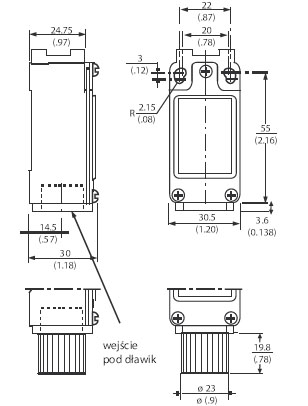

Dimensions [mm/in]
Fast contact 1NZ/1NO |
Slow contact Break before make 1NZ /1NO |
Lever type | ||
---|---|---|---|---|
![]() |
![]() |
|||
O.F. - Operating Force R.F. - Release Force R.T. - Pretravel O.T. - Overtravel D.T. - Differential travel O.P. - Operating Position F.P. - Free Position |
![]() |
![]() |
![]() Leverage side a metal roller |
|
![]() |
![]() |
![]() Side lever |
![]() |
|
![]() |
![]() |
![]() Pusher with roller |
![]() |
|
* - Pewne otwarcie zgodnie z IEC/EN60947-5-1-3 | ![]() |
![]() |
![]() The top lever with roller |
![]() |
|
![]() |
![]() |
![]() rod spring |
![]() |
![]() |
![]() |
|||
![]() |
![]() |
Slow contact Break before make 1NZ/1NO |
Slow contact 2NZ |
Lever type | ||
---|---|---|---|---|
![]() |
![]() |
|||
O.F. - Operating Force R.F. - Release Force R.T. - Pretravel O.T. - Overtravel D.T. - Differential travel O.P. - Operating Position F.P. - Free Position |
![]() |
![]() |
![]() Leverage side a metal roller |
|
![]() |
![]() |
![]() Side lever |
![]() |
|
![]() |
![]() |
![]() Pusher with roller |
![]() |
|
* - Pewne otwarcie zgodnie z IEC/EN60947-5-1-3 | ![]() |
![]() |
![]() The top lever with roller |
![]() |
|
![]() |
![]() |
![]() rod spring |
![]() |
![]() |
![]() |
|||
![]() |
![]() |
