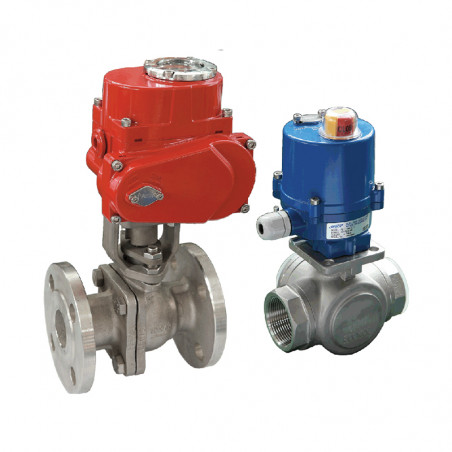

Electric actuator GQ-001/002/004, 006/008
  • Electric actuator GQ-001/002/004, 006/008

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: GINICE KOREA

Electric actuator GQ-001/002/004, 006/008



Features:

  • Suitable for Ball valve, Butterfly valve or Damper
  • Vary voltage : 12 or 24VAC/DC, 95~245VAC
  • Compact [&] Light design
  • With Manual Lever
  • Weather-proof (IP67)
  • ISO5211 Mounting flange : F03/04/05
  • Bottom bore : 11 or 14mm double square
  • Modulating, Potentiometer etc available (Applied to GQ-006/008)


Technical data

Item GQ-001  GQ-002  GQ-004  GQ-006  GQ-008
Output torque 15Nm 20Nm 40Nm  60Nm 80Nm
Operating time 3s 4s  7s  15/17s  15/17s
Supplying power 2 or 24VAC/DC, 95~245VAC 24VAC or DC, 110 or 220VAC
Limit switches 2 Limit switch for operation, 2 additional limit switch for dry contact
Manual operation Manual lever
Enclosure IP67
Mounting base F03/04/05 (ISO5211)  F05/07 (ISO5211)
Bottom bore 11 X 11  14 X 14  14 X 14  14 X 14  14 X 14
Conduit Entries PF1/2ｘ 1EA  PF1/2ｘ 2EA
Weight 1.2Kg 3.5Kg
