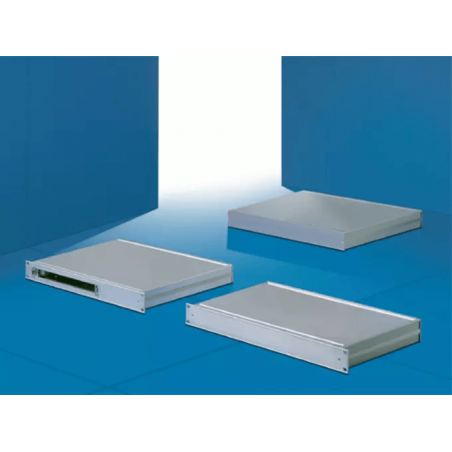

3687822 Heibox Alu, 1 U, 300 mm, table chassis
  • 3687822 Heibox Alu, 1 U, 300 mm, table chassis

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: HEITEC AG

3687822 Heibox Alu, 1 U, 300 mm, table chassis

  • 3687822
  • Series Heibox ALU
  • Width (HP) Szerokość użytkowa 21 HP
  • Packed after 8 części
Technical specifications:
System enclosures 1 U, 150,200, 250, 300, 350 mm deep Easy to assemble with just4 screws. Optionally for use as an instrument case or 19˝ rackmountenclosure. Front panel to hold an overlayto conceal the screws. Maximum interior space.Optional EMC upgrades with additional EMC gaskets.Option of installing 1 VME or CPCI board horizontally.

Design:
System enclosure 1 U,
to IEC 60 297-3. Optionally available for 19˝ rackmounting
in the enclosure or as an instrument case version.
  1. Equipped as an instrument case
  2. Equipped as a rackmount unit
Material/surface finish:
  • Side panels: Extruded aluminum section, untreated
  • Base/cover trays: Aluminum, clear-chromated
  • Front/rear panel: Extruded aluminum section, clear-chromated
  • Mounting plate: Sheet steel
