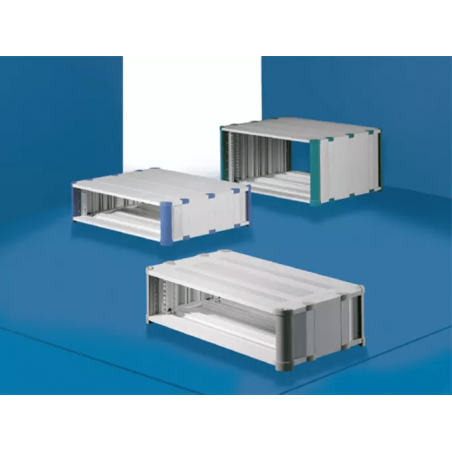

3750452 Heicase 269.2 mm (1/2 19 '') ventilated, 4U, 540 mm, RAL 5012
  • 3750452 Heicase 269.2 mm (1/2 19 '') ventilated, 4U, 540 mm, RAL 5012
  • 3750452 Heicase 269.2 mm (1/2 19 '') ventilated, 4U, 540 mm, RAL 5012

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: HEITEC AG

3750452 Heicase 269.2 mm (1/2 19 '') ventilated, 4U, 540 mm, RAL 5012

  • 3750452
  • Series Heicase
  • Colour RAL 5012
  • Version wentylowane, dla CPCI, max. temperatura 65°C
    wentylowany
  • Height (U) 6 U
  • to PCB depth 160 mm
  • Packed after 1 część
Universal instrument case in a timeless design
  • Flexible sizing through modular design
  • Wide range of accessories
  • Individual colouring
Technical specifications:
  • Depth: 300 mm, 420mm, 540 mm
  • Installation width: 269.2 mm (½ 19˝)
  • Installation options: 269.2 mm (½ 19˝)-slide-in equipment to IEC 60 297-3

Material/surface finish:
  • Covers: Extruded aluminum section/ die-cast, spray-finished
  • Side panels: Extruded aluminum section, spray-finished
  • Corner caps: Plastic 482.6 mm (19˝) mounting
  • bracket: Extruded aluminum section, clear-chromated

Color:
RAL 7035 (pale grey)

Decorative colors and corner caps:
  • RAL 5018 (turquoise)
  • RAL 5012 (pale blue)
  • RAL 7030 (stone grey)

Protection category:
IP 42 for unvented version.

Supply includes:
  • 2 side panels,
  • 2 covers,
  • 8 corner caps,
  • 8/12/16 cover caps (300/420/540 mm depth),
  • 4 482.6 mm (19˝) mounting brackets,
  • 4 threaded inserts,
  • 2 plain inserts,
  • 1 rear panel,
  • Cases are supplied preassembled

Special sizes and colors available on request.

Property rights:
German registered design
no. 96 09 457
UK reg. design no. 2064682
US design patents
Des. 402,640 and
Des. 423,464
Japan. reg. designs
no. 1045507 and 1045508
