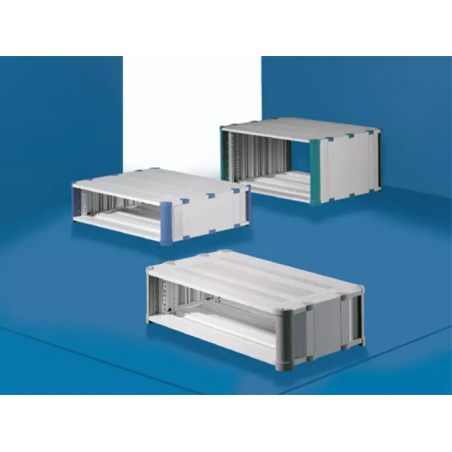

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: HEITEC AG

3750702 Heicase uncolored 7U, 420 mm, RAL 5012

  • 3750702
  • Series Heicase
  • Colour RAL 5012
  • Height (U) 3 U
  • Width (HP) 84 HP
  • Packed after 1 część
Universal instrument case in a timeless design
  • Flexible sizing through modular design
  • Wide range of accessories
  • Individual colouring
Technical specifications:
  • Depth: 300 mm, 420 mm, 540 mm
  • Installation width: 482.6 mm (19˝)
  • Installation options: 482.6 mm (19˝) slide-in equipment to IEC 60 297-3
Material/surface finish:
  • Covers: Extruded aluminum section/ die-cast, spray-finished
  • Side panels: Extruded aluminum section, spray-finished
  • Corner caps: Plastic 482.6 mm (19˝) mounting
  • bracket: extruded aluminium section, clear-chromated
Color: RAL 7035 (pale grey) Decorative colors and corner caps:
  • RAL 5018 (turquoise)
  • RAL 5012 (pale blue)
  • RAL 7030 (stone grey)
Protection category:
IP 42 for unvented version. Supply includes:
  • 2 side panels,
  • 2 covers,
  • 8 corner caps,
  • 8/12/16 cover caps (300/420/540 mm depth),
  • 4 482.6 mm (19˝) mounting brackets,
  • 4 threaded inserts,
  • 2 plain inserts
  • Cases are supplied preassembled
Special sizes and colors available on request. Note:
For rear installation, order back panel/door separately.
