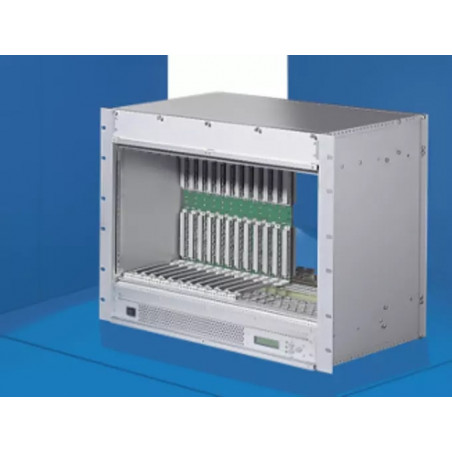

System rackowy HeiPac 9 U/12 Slot, z wentylatorem promieniowym HeiCool (VME)

Heipac 9 U / 12 Slot, with Heicool radial fan (VME)

Using the HEIPAC 9 Rack System U / 12 Slot, with HEICOOL radial fan (VME)

Used to configure industrial computers based on VME technology with particular intended use for the industrial automation industry, image processing, traffic management and control of industrial processes.

Technical characteristics of the HEIPAC 9 U / 12 Rack System, with Heicool radial fan (VME)

• 482.6 mm rack housing system (19 ") for vertical assembly of double eurocard cards
• Height of the 9U, depth 290.5 mm, on the back of the I / O module
• Aluminum, chromium
• The kit includes a rear panel, power supply and 2 radial fans heicool (204 m3 / h)
• System completely assembled, wired and tested
• Installation space for Eurocard / Dual Eurocard cards: 12 slots
• Installation of VME and VME64X boards according to the VME specification

Basic advantages of the HEIPAC 9 U / 12 Rack System, with Heicool radial fan (VME)

• Vertical double installation Eurocard
• EMC and ESD protection
• System completely assembled, wired and tested
• Properly targeted by the air stream fans from the front backward
• Rear I / O module
• Guides finished with keys
• Effective ventilation carried out by 2 axial heicool fans (204 m3 / h)
• Compliance with IEC 60 297-3-101, -102, -103
