Manufacturer: HEITEC AG

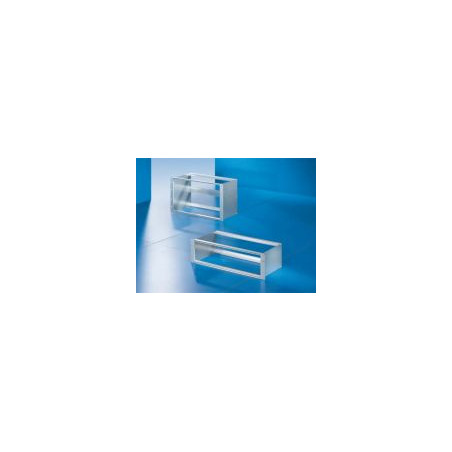

3634210 Heipac Easy 6U, 84 HP, 355 mm for backplane

  • 3634210
  • Series Heipac Easy
  • Type Backplane
  • Width 84 HP
  • Height 6 U
  • Depth 355 mm
  • Material Aluminium
Economical, sturdy 19"" subrack system
  • Fast and easy handling by pre-assembled screws in the horizontal rails
  • Rails with double screw for heavy loads
  • Top covers easilyto retract
  • EASY to handle and yet extremely versatile
Material/surface finish:
  • Side panels: 2 mm aluminum, unplated
  • Horizontal rails: extruded aluminum section, noncorrosive
  • Flanges: pre-anodized

Supply includes:
  • Side panels
  • flanges
  • horizontal rails
  • tapped strips
  • assembly screws

Tests:
Shock- and vibration tested to:
IEC 600-68-2-6 test Fc
IEC 600-68-2-7 test Ea

Standards:
HeiPac subracks are based on the system dimensions of IEC 60 297-3
Note:
Backplanes can be mounted directly on the rear horizontal rails. Isolating strips are not necessary.
Less
Read more
0.00 PLN
0.00 PLN Gross price / pcs.
0.00 PLN Net price / pc.
Tax included
Availability: Available quantity: 2
2 weeks Estimated delivery / order fulfillment time. The order fulfillment time depends on the production capabilities.
