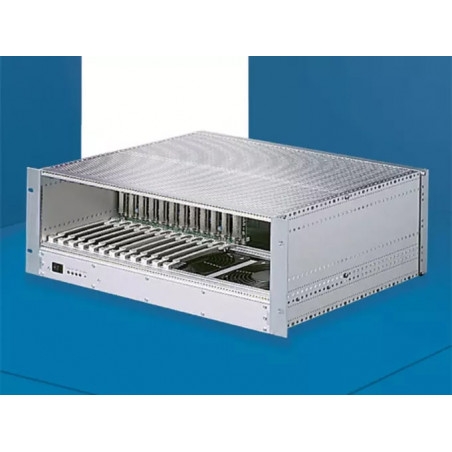

Gniazdo HeiPac 4 U/12, gniazdo 7 U/12 (VME)
  • Gniazdo HeiPac 4 U/12, gniazdo 7 U/12 (VME)

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: HEITEC AG

Gniazdo HeiPac 4 U/12, gniazdo 7 U/12 (VME)

HEIPAC 4 U / 12 slot, 7 U / 12 socket (VME)


Uses HEIPAC 4 U / 12 slot, 7 U / 12 (VME) socket

Used to configure industrial computers based on VME technology with particular intended use for the industrial automation industry, image processing, traffic management and control of industrial processes.


Technical characteristics HEIPAC 4 U / 12 slot, 7 U / 12 socket (VME)

  • 482.6 mm rack housing system (19 ") to horizontal assembly of Eurocard / Dual Eurocard
  • 4U height, 7U, depth 405 mm
  • Aluminum, chromium
  • The set includes a rear panel and power supply
  • Cooling unit with 3 DC fans
  • System completely assembled, wired and tested
  • Installation space for double eurocard: 12
  • Installation of VME and VME64X boards according to the VME specification

Basic advantages of HEIPAC 4 U / 12 socket, 7 U / 12 socket (VME)

  • Vertical double installation Eurocard
  • EMC and ESD protection
  • System completely assembled, wired and tested
  • Suitably targeted by air stream from below upwards
  • Guides finished with keys
  • Compatibility with CompactPCI Spec. 2.0 Rev. 3.0, IEC 60 297-3-101, -102, -103

Product No. Height (he) Side panel depth PCB slot depth Version Number of slots
9909484 4 U (3 + 1) 405 mm 160 mm Vume 12
9910956 7 U (6 + 1) 405 mm 160 mm Vume 12
9910957 7 U (6 + 1) 405 mm 160 mm VME64x 12
