3684036 Heipac Vario 3U, 84 HP, 245 mm to connectors
  • 3684036 Heipac Vario 3U, 84 HP, 245 mm to connectors

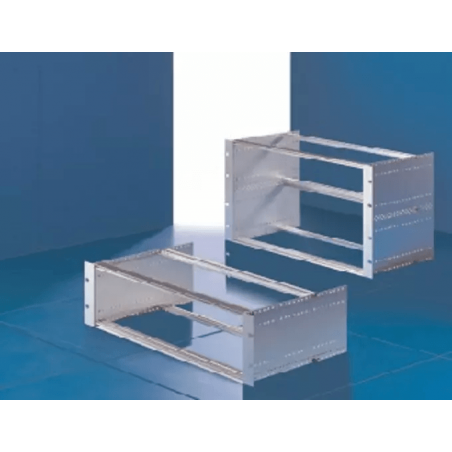

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: HEITEC AG

3684036 Heipac Vario 3U, 84 HP, 245 mm to connectors

  • 3684036
  • Series Heipac Vario
  • Version wentylowane dla głębokości subrack 4U
  • Height (U) 6 U poziomy
  • Width (HP) 63 HP
  • Packed after 1 część
  • EMC nie
For standard applications/EMC applications or complex installations
  • Wide range of standard sizes
  • For installation of backplanes or connectors
  • 10 mm pitch pattern of holes allows many varieties
  • Contact springs made of stainless steel provide high EMC protection
  • Components made of solid aluminium alloy
  • Effective heat dissipation due to open design
Material/surface finish:
  • Side panels: 2.5 mm aluminum, clear-chromated
  • flanges and horizontal rails: Extruded aluminum section, clear-chromated
Supply includes:
  • Flanges,
  • side panels,
  • horizontal rails,
  • threaded inserts, insulating strips or Z rails.
Tests:
Shock and vibration tested to:
  • IEC 600-68-2-6 test Fc
  • IEC 600-68-2-27 test Ea
Standards:
HeiPac subracks are based on the system dimensions of IEC 60 297-3.
