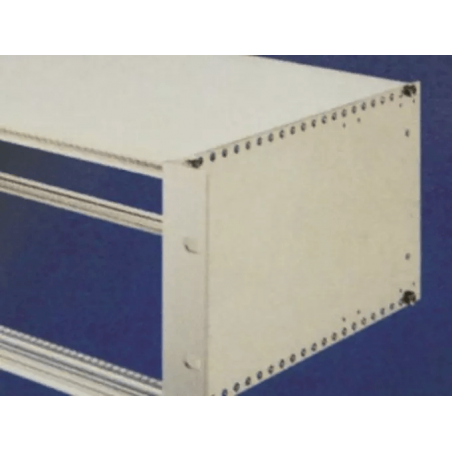

3688115 Heipac Vario Eco 3U, 84 HP, 235 mm
  • 3688115 Heipac Vario Eco 3U, 84 HP, 235 mm
  • 3688115 Heipac Vario Eco 3U, 84 HP, 235 mm

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: HEITEC AG

3688115 Heipac Vario Eco 3U, 84 HP, 235 mm

  • 3688115
  • Series Heipac Vario ECO
  • Version Uchwyt montażowy do uchwytu karty
  • Packed after 1 część
Economical 19” subrack system for standard applications
  • Rear installation for backplanes, optionally for connectors
  • Fast and easy handling
  • Side panels made of zinc-plated sheet steel
  • Plug-in top covers facilitate an easy assembly
  • A wide range of accessories allow manifold expansions
Material/surface finish:
  • Side panels: 1.5 mm sheet steel, zinc-plated
  • Flanges/horizontal rails: Extruded aluminum section, clear-chromated

Supply includes:
  • Side panels
  • flanges
  • horizontal rails
  • threaded inserts
  • assembly screws

Tests:

Shock and vibration tested to:
  • IEC 600-68-2-6 test Fc
  • IEC 600-68-2-27 test Ea

Standards:

HeiPac subracks are based on the system dimensions of DIN 41 494 part 5 and IEC 60 297-3.

Send an inquiry

Are you interested in this product? Do you need additional information or individual pricing?

Contact us
ASK FOR THE PRODUCT close
Thank you for sending your message. We will respond as soon as possible.
ASK FOR THE PRODUCT close
Browse

Add to Wishlist

You must be logged in

  • Series Heipac Vario ECO
  • Version Uchwyt montażowy do uchwytu karty
  • Packed after 1 część
Economical 19” subrack system for standard applications
  • Rear installation for backplanes, optionally for connectors
  • Fast and easy handling
  • Side panels made of zinc-plated sheet steel
  • Plug-in top covers facilitate an easy assembly
  • A wide range of accessories allow manifold expansions
Material/surface finish:
  • Side panels: 1.5 mm sheet steel, zinc-plated
  • Flanges/horizontal rails: Extruded aluminum section, clear-chromated

Supply includes:
  • Side panels
  • flanges
  • horizontal rails
  • threaded inserts
  • assembly screws

Tests:

Shock and vibration tested to:
  • IEC 600-68-2-6 test Fc
  • IEC 600-68-2-27 test Ea

Standards:

HeiPac subracks are based on the system dimensions of DIN 41 494 part 5 and IEC 60 297-3.
