3688116 Heipac Vario Eco 6U, 84 HP, 175 mm
  • 3688116 Heipac Vario Eco 6U, 84 HP, 175 mm
  • 3688116 Heipac Vario Eco 6U, 84 HP, 175 mm

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: HEITEC AG

3688116 Heipac Vario Eco 6U, 84 HP, 175 mm

  • 3688116
  • Series Heipac Vario ECO
  • Version Odrzucanie karty i ustalacz karty
  • Packed after 10 zestawów

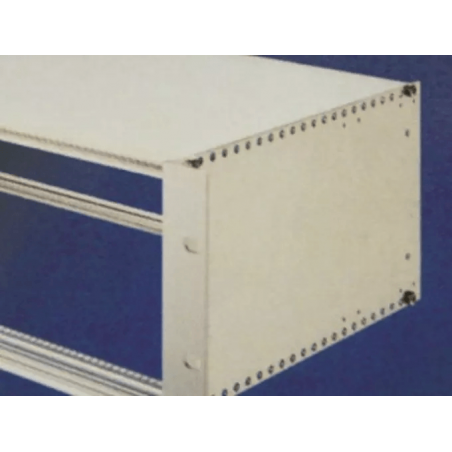

Economical 19” subrack system for standard applications
  • Rear installation for backplanes, optionally for connectors
  • Fast and easy handling
  • Side panels made of zinc-plated sheet steel
  • Plug-in top covers facilitate an easy assembly
  • A wide range of accessories allow manifold expansions
Material/surface finish:
  • Side panels: 1.5 mm sheet steel, zinc-plated
  • Flanges/horizontal rails: Extruded aluminum section, clear-chromated

Supply includes:
  • Side panels
  • flanges
  • horizontal rails
  • threaded inserts
  • assembly screws

Tests:

Shock and vibration tested to:
  • IEC 600-68-2-6 test Fc
  • IEC 600-68-2-27 test Ea

Standards:

HeiPac subracks are based on the system dimensions of DIN 41 494 part 5 and IEC 60 297-3.
