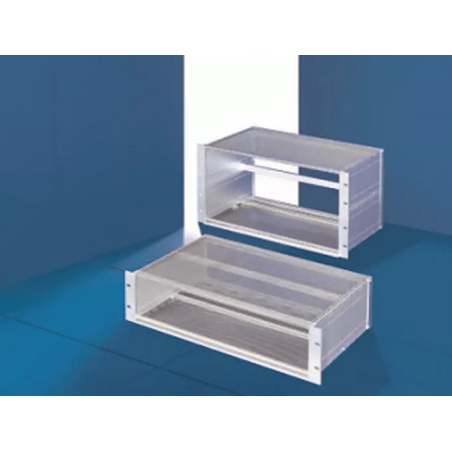

3684145 Heipac Vario EMC 3U, 84 HP, 405 mm (horizontal at the front of 10 mm to handles)
  • 3684145 Heipac Vario EMC 3U, 84 HP, 405 mm (horizontal at the front of 10 mm to handles)

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: HEITEC AG

3684145 Heipac Vario EMC 3U, 84 HP, 405 mm (horizontal at the front of 10 mm to handles)

  • 3684145
  • Series Heipac Vario EMC
  • Version Front szyny poziomej z blatem 10 mm na uchwyty (V-Ext.1)
    S
  • Height (U) 6 U
  • Bus size 32 Bit
  • Number of slots 8 Slot
  • Packed after 1 część
  • EMC tak
For standard applications/EMC applications or complex installations
  • Wide range of standard sizes
  • For installation of backplanes or connectors
  • 10 mm pitch pattern of holes allows many varieties
  • Contact springs made of stainless steel provide high EMC protection
  • Components made of solid aluminium alloy
  • Effective heat dissipation due to open design
Material/surface finish:
  • Side panels: 2.5 mm aluminum, clear-chromated
  • Flanges and horizontal rails: Extruded aluminum section, clear-chromated
  • Covers: Aluminum, unplated
Supply includes:
  • Flanges
  • rear trim
  • side panels
  • EMC gaskets
  • covers
  • mounting blocks
  • horizontal rails
  • insulating strips.
Tests:
Shock and vibration tested to:
  • IEC 600-68-2-6 test Fc
  • IEC 600-68-2-27 test Ea
Standards:
HeiPac subracks are based on the system dimensions of IEC 60 297-3.
