Manufacturer: HEITEC AG

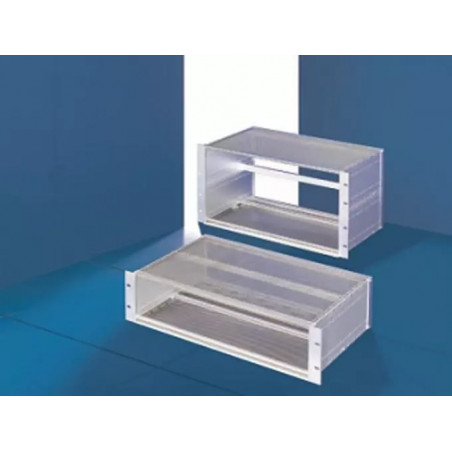

Subrack Heipac Vario EMC

Subrack Heipac Vario EMC - designed for standard applications and extensive systems requiring EMC protection.


Applications Subrack Heipac Vario EMC

A typical solution for standard applications or for higher requirements for housing.


Technical characteristics Subrack Heipac Vario EMC

  • Subrack 482.6 mm (19) According to this IEC 60 297-3
  • Height: 3, 4, 6, 7 or 9 U
  • PCB tile depth: up to 400 mm
  • Side panels with chrome aluminum
  • 10 mm Connection rail for installation of horizontal rails
  • Rear equipment for panel mounting or connectors
  • External 19 "flanges
  • A version of the EMC version with EMC gaskets

Basic advantages of Subrack Heipac Vario EMC

  • Side panels with 10 mm mounting rail
  • The possibility of expanding to the EMC version
  • Optional 19˝ Flants for mounting on the front or back
  • A wide range of available sizes
  • Prepared for mounting the rear panel or connectors
  • A wide range of accessories

Heipac Vario EMC 3 U, 6 U, 9 U

Product No. Height (he) Width (te) Side panel depth Max. PCB depth How to connect electronics Version
3684128 3 U 84 HP 245 mm 160 mm rear panel Front vertical rail (V1)
3684142 3 U 84 HP 245 mm 160 mm rear panel Front vertical rail with 10 mm top for handles (V-EXT.1)
3684129 3 U 84 HP 285 mm 220 mm rear panel Front vertical rail (V1)
3684143 3 U 84 HP 285 mm 220 mm rear panel Front vertical rail with 10 mm top for handles (V-EXT.1)
3685241 3 U 84 HP 305 mm 220 mm rear panel Front vertical rail (V1)
3685243 3 U 84 HP 305 mm 220 mm rear panel Front vertical rail with 10 mm top for handles (V-EXT.1)
3684130 3 U 84 HP 345 mm 280 mm rear panel Front vertical rail (V1)
3684144 3 U 84 HP 345 mm 280 mm rear panel Front vertical rail with 10 mm top for handles (V-EXT.1)
3684131 3 U 84 HP 405 mm 340 mm rear panel Front vertical rail (V1)
3684145 3 U 84 HP 405 mm 340 mm rear panel Front vertical rail with 10 mm top for handles (V-EXT.1)
3684132 3 U 84 HP 465 mm 400 mm rear panel Front vertical rail (V1)
3684146 3 U 84 HP 465 mm 400 mm rear panel Front vertical rail with 10 mm top for handles (V-EXT.1)
3684133 3 U 84 HP 525 mm 400 mm rear panel Front vertical rail (V1)
3684147 3 U 84 HP 525 mm 400 mm rear panel Front vertical rail with 10 mm top for handles (V-EXT.1)
3684156 6 u 84 HP 245 mm 160 mm rear panel Front vertical rail (V1)
3684169 6 u 84 HP 245 mm 160 mm rear panel Front vertical rail with 10 mm top for handles (V-EXT.1)
3684157 6 u 84 HP 285 mm 220 mm rear panel Front vertical rail (V1)
3684170 6 u 84 HP 285 mm 220 mm rear panel Front vertical rail with 10 mm top for handles (V-EXT.1)
3685242 6 u 84 HP 305 mm 220 mm rear panel Front vertical rail (V1)
3685244 6 u 84 HP 305 mm 220 mm rear panel Front vertical rail with 10 mm top for handles (V-EXT.1)
3684158 6 u 84 HP 345 mm 280 mm rear panel Front vertical rail (V1)
3684171 6 u 84 HP 345 mm 280 mm rear panel Front vertical rail with 10 mm top for handles (V-EXT.1)
3684159 6 u 84 HP 405 mm 340 mm rear panel Front vertical rail (V1)
3684172 6 u 84 HP 405 mm 340 mm rear panel Front vertical rail with 10 mm top for handles (V-EXT.1)
3684160 6 u 84 HP 465 mm 400 mm rear panel Front vertical rail (V1)
3684173 6 u 84 HP 465 mm 400 mm rear panel Front vertical rail with 10 mm top for handles (V-EXT.1)
3684161 6 u 84 HP 525 mm 400 mm rear panel Front vertical rail (V1)
3684174 6 u 84 HP 525 mm 400 mm rear panel Front vertical rail with 10 mm top for handles (V-EXT.1)
3684162 9 u 84 HP 345 mm 280 mm rear panel Front vertical rail (V1)
3684175 9 u 84 HP 345 mm 280 mm rear panel Front vertical rail with 10 mm top for handles (V-EXT.1)
3684163 9 u 84 HP 405 mm 340 mm rear panel Front vertical rail (V1)
3684176 9 u 84 HP 405 mm 340 mm rear panel Front vertical rail with 10 mm top for handles (V-EXT.1)
3684164 9 u 84 HP 465 mm 400 mm rear panel Front vertical rail (V1)
3684177 9 u 84 HP 465 mm 400 mm rear panel Front vertical rail with 10 mm top for handles (V-EXT.1)
3684165 9 u 84 HP 525 mm 400 mm rear panel Front vertical rail (V1)
3684178 9 u 84 HP 525 mm 400 mm rear panel Front vertical rail with 10 mm top for handles (V-EXT.1)
3684166 9 u 84 HP 585 mm 400 mm rear panel Front vertical rail (V1)
3684179 9 u 84 HP 585 mm 400 mm rear panel Front vertical rail with 10 mm top for handles (V-EXT.1)


Heipac Vario EMC 4 U, 7 U

Product No. Height (he) Width (te) Side panel depth Max. PCB depth How to connect electronics Version
3684134 4 U (3 + 1) 84 HP 285 mm 220 mm rear panel Front vertical rail (V1)
3684148 4 U (3 + 1) 84 HP 285 mm 220 mm rear panel Front vertical rail with 10 mm top for handles (V-EXT.1)
3684135 4 U (3 + 1) 84 HP 345 mm 280 mm rear panel Front vertical rail (V1)
3684149 4 U (3 + 1) 84 HP 345 mm 280 mm rear panel Front vertical rail with 10 mm top for handles (V-EXT.1)
3684136 4 U (3 + 1) 84 HP 405 mm 340 mm rear panel Front vertical rail (V1)
3684150 4 U (3 + 1) 84 HP 405 mm 340 mm rear panel Front vertical rail with 10 mm top for handles (V-EXT.1)
3684137 4 U (3 + 2x1 / 2) 84 HP 285 mm 220 mm rear panel Front vertical rail (V1)
3684151 4 U (3 + 2x1 / 2) 84 HP 285 mm 220 mm rear panel Front vertical rail with 10 mm top for handles (V-EXT.1)
3684138 4 U (3 + 2x1 / 2) 84 HP 345 mm 280 mm rear panel Front vertical rail (V1)
3684152 4 U (3 + 2x1 / 2) 84 HP 345 mm 280 mm rear panel Front vertical rail with 10 mm top for handles (V-EXT.1)
3684139 4 U (3 + 2x1 / 2) 84 HP 405 mm 340 mm rear panel Front vertical rail (V1)
3684153 4 U (3 + 2x1 / 2) 84 HP 405 mm 340 mm rear panel Front vertical rail with 10 mm top for handles (V-EXT.1)
3684187 7 U (6 + 1) 84 HP 285 mm 220 mm rear panel Front vertical rail (V1)
3684192 7 U (6 + 1) 84 HP 285 mm 220 mm rear panel Front vertical rail with 10 mm top for handles (V-EXT.1)
3684188 7 U (6 + 1) 84 HP 345 mm 280 mm rear panel Front vertical rail (V1)
3684193 7 U (6 + 1) 84 HP 345 mm 280 mm rear panel Front vertical rail with 10 mm top for handles (V-EXT.1)
3684180 7 U (6 + 1) 84 HP 405 mm 340 mm rear panel Front vertical rail (V1)
3684194 7 U (6 + 1) 84 HP 405 mm 340 mm rear panel Front vertical rail with 10 mm top for handles (V-EXT.1)
3684181 7 U (6 + 1) 84 HP 465 mm 400 mm rear panel Front vertical rail (V1)
3684195 7 U (6 + 1) 84 HP 465 mm 400 mm rear panel Front vertical rail with 10 mm top for handles (V-EXT.1)
3684189 7 U (6 + 2x1 / 2) 84 HP 345 mm 280 mm rear panel Front vertical rail (V1)
3684196 7 U (6 + 2x1 / 2) 84 HP 345 mm 280 mm rear panel Front vertical rail with 10 mm top for handles (V-EXT.1)
3684190 7 U (6 + 2x1 / 2) 84 HP 405 mm 340 mm rear panel Front vertical rail (V1)
3684197 7 U (6 + 2x1 / 2) 84 HP 405 mm 340 mm rear panel Front vertical rail with 10 mm top for handles (V-EXT.1)
3684191 7 U (6 + 2x1 / 2) 84 HP 465 mm 400 mm rear panel Front vertical rail (V1)
3684198 7 U (6 + 2x1 / 2) 84 HP 465 mm 400 mm rear panel Front vertical rail with 10 mm top for handles (V-EXT.1)
