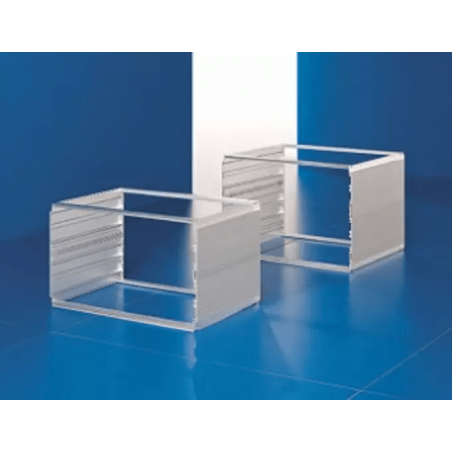

3983290 Heipac Vario-Basic module EMC 2U / 63HP / 250,4mm housing

Modern system enclosure for mobile and stationary applications

• Easy modification from instrument case to rack-mount system
• Flange for 19"" installation
• Front corner trims for assembly as instrument case
• Interior fittings from the HeiPac Vario range

Technical specifications:
May be used as a rack-mount enclosure or instrument case. External dimensions to IEC 60 297-3 for installation in 482.6 mm (19˝) racks. Installation dimensions for board type plug-in assemblies to IEC 60 297-3-101. Material/surface finish:

• Side panels: Extruded aluminum section, spray-finished in RAL 7035
• Horizontal rails: Extruded aluminum section, clear-chromated
• Corner trims: Die-cast zinc, spray-finished in RAL 7035
• Contact points: Conductive

Protection category:
IP 40 for non-vented version. Supply includes:

• 2 side panels
• 4 horizontal rails
• 4 threaded inserts
• 2 rear corner trims
• 2 side trims centre
• assembly parts

Note:
Corner trims, mounting flanges and top and bottom covers must be ordered separately.Additional information:

• Equipped as an instrument case
• Equipped as a rack-mount unit

Horizontal rails for further configuration must be ordered separately.
