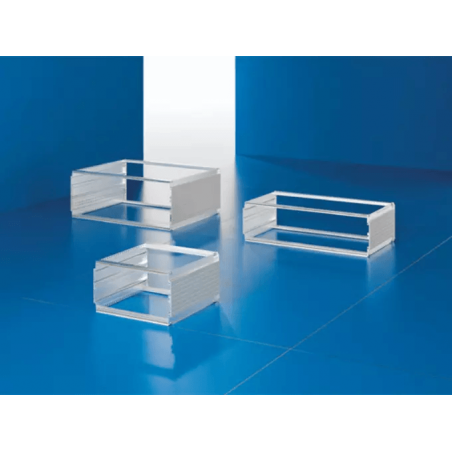

3982050 Heipac Vario-basic module 3U / 63HP / 250,4mm housing
  • 3982050 Heipac Vario-basic module 3U / 63HP / 250,4mm housing

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: HEITEC AG

3982050 Heipac Vario-basic module 3U / 63HP / 250,4mm housing

  • 3982050
  • Series Heipac Vario-Module
  • Colour RAL 7035
  • Version Obudowa podstawowa
    dla głębokości szafy 800 mm, max. przedłużenie 596,4 mm
  • Packed after 1 Zestaw
Modern system enclosure for mobile and stationary applications
  • Easy modification from instrument case to rack-mount system
  • Flange for 19"" installation
  • Front corner trims for assembly as instrument case
  • Interior fittings from the HeiPac Vario range
Technical specifications:
Optionally for use as an instrument case or rack-mount enclosure. External dimensions to IEC 60 297-3 for installation in enclosures, 482,6 mm (19˝ ). Installation dimensions for plug-in units according to IEC 60 297-3-101. Protection category:
IP 40 for non-vented version Supply includes:
  • 2 side panels
  • 4 horizontal rails
  • 4 tapped strips
  • 2 corner trims
  • Assembly parts
    • Equipped as an instrument case
    • Equipped as a rack-mount enclosure
Material/surface finish:
  • Side panels: Extruded aluminum section, spray-finished in RAL 7035
  • Cross profiles: Extruded aluminum section, clear-chromated
  • Corner trims: zinc-plated, spray-finished in RAL 7035
  • Side trim panels: Extruded aluminum section, spray-finished in RAL 7035
Note:
Corner trims, mounting flanges and top/bottom covers have to be ordered separately.
