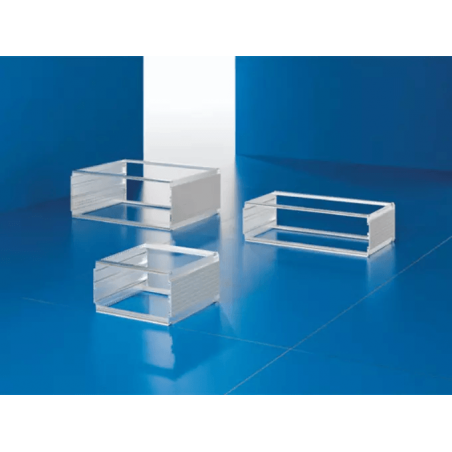

3983140 Heipac Vario-Basic Module Housing EMC 6U / 84HP / 310,4mm
  • 3983140 Heipac Vario-Basic Module Housing EMC 6U / 84HP / 310,4mm
  • 3983140 Heipac Vario-Basic Module Housing EMC 6U / 84HP / 310,4mm

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: HEITEC AG

3983140 Heipac Vario-Basic Module Housing EMC 6U / 84HP / 310,4mm

  • 3983140
  • Series Heipac Vario-Module
  • Colour RAL 7035
  • Version Obudowa podstawowa
    z nadrukiem wzoru HP
  • Width (HP) Szerokość użytkowa 84 HP
  • Packed after 1 część
  • EMC tak
Modern system enclosure for mobile and stationary applications
  • Easy modification from instrument case to rack-mount system
  • Flange for 19"" installation
  • Front corner trims for assembly as instrument case
  • Interior fittings from the HeiPac Vario range
Technical specifications:
May be used as a rack-mount enclosure or instrument case. External dimensions to IEC 60 297-3 for installation in 482.6 mm (19˝) racks. Installation dimensions for board type plug-in assemblies to IEC 60 297-3-101. Material/surface finish:
  • Side panels: Extruded aluminum section, spray-finished in RAL 7035
  • Horizontal rails: Extruded aluminum section, clear-chromated
  • Corner trims: Die-cast zinc, spray-finished in RAL 7035
  • Contact points: Conductive
Protection category:
IP 40 for non-vented version. Supply includes:
  • 2 side panels
  • 4 horizontal rails
  • 4 threaded inserts
  • 2 rear corner trims
  • 2 side trims centre
  • assembly parts
Note:
Corner trims, mounting flanges and top and bottom covers must be ordered separately.Additional information:
  • Equipped as an instrument case
  • Equipped as a rack-mount unit
Horizontal rails for further configuration must be ordered separately.
